REXROTH OIL CONTROL阀VEP-5A-3R-03系列技术参数
TECHNICAL DATA | |
Maximum Pressure inlet in 2 | 350 bar |
Reduced Pressure in 1 | 4-100 bar |
Rated Flow | 2 l/min |
I Max(±10%) for coil 12 V DC | 2 A |
I Min(±10%) for coil 12 V DC | 0.3 A |
Recommended PWM frequency | 120-150 Hz |
Weight | 0.240 kg |
Internal leakage at 350 bar with 46 cst oil | Max.5 cm³/min |
Mounting Position | unrestricted |
N.B. It is recommended to bleed air carefully before operation. | |

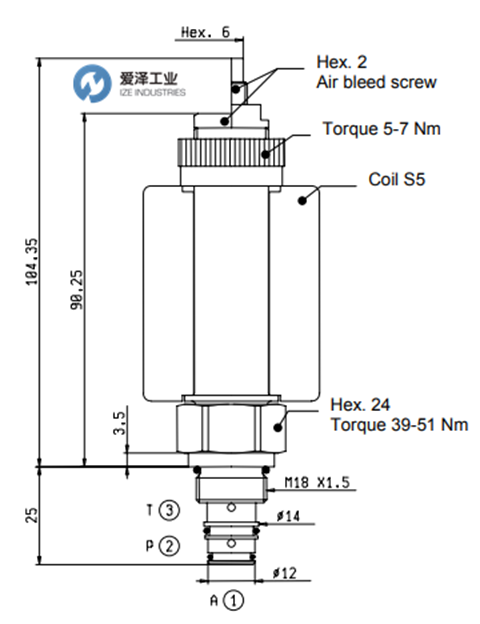

REXROTH OIL CONTROL阀VEP-5A-3R-03系列技术尺寸
REXROTH OIL CONTROL阀VEP-5A-3R-03系列其他常用型号：
REXROTH OIL CONTROL OD910181030000 R934001496
REXROTH OIL CONTROL OD910181040000 R930044830
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD910181030000 R934001496的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀VEP-5A-3R-03系列OD910181030000 R934001496技术参数及尺寸
