REXROTH OIL CONTROL阀VED-16-08A-32系列技术参数
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure up to | 280 bar (4060 psi) * |
Max. fl ow | up to 20 l/min (5 gpm) |
Max. internal leakage at 230 bar | 40 cm3/min. (2.4 cu.in/min.) |
Fatigue cycle life | 1 million cycles at 250 bar |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-3N |
Seal kit | code RG08A3010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Admitted voltage tolerance: | -10% / +25% of nominal voltage at 60°C amb. T |
Power consumption | 20 W |

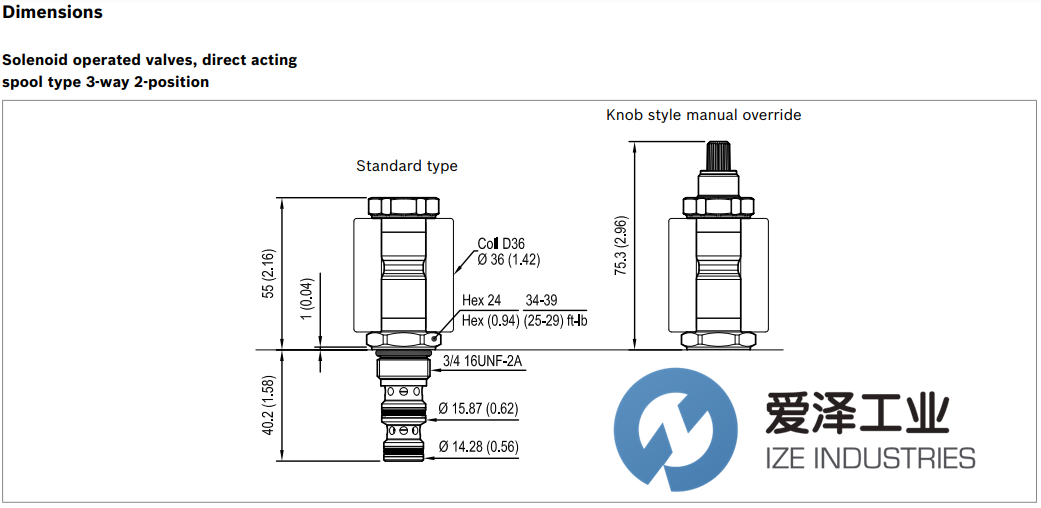

REXROTH OIL CONTROL阀VED-16-08A-32系列技术尺寸

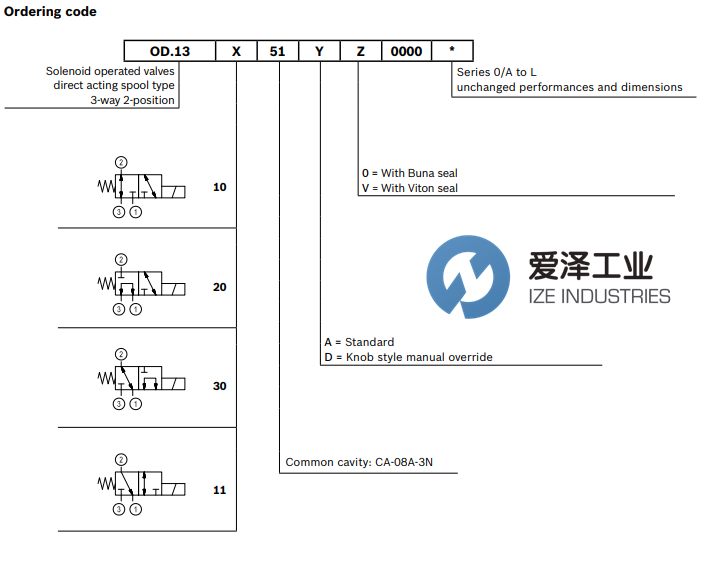

REXROTH OIL CONTROL阀VED-16-08A-32系列选型
REXROTH OIL CONTROL阀VED-16-08A-32系列其他常用型号：
REXROTH OIL CONTROL OD131051A000000 R930058342
REXROTH OIL CONTROL OD131051D000000 R930058707
REXROTH OIL CONTROL OD131151A000000 R930058704
REXROTH OIL CONTROL OD131151D000000 R930058708
REXROTH OIL CONTROL OD132051A000000 R930058703
REXROTH OIL CONTROL OD132051D000000 R930058709
REXROTH OIL CONTROL OD133051A000000 R930058702
REXROTH OIL CONTROL OD133051D000000 R930058710
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD131151A000000 R930058704的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD131151A000000 R930058704技术参数
