REXROTH OIL CONTROL阀RU7 R932500550技术参数
Code | RU 7 |
Pressure Pmax bar (psi) | 350 (5000) |
Flow Qmax l/min (gpm) | 25 (7) |
Weight kg (lbs) | 0.28 (0.62) |
REXROTH OIL CONTROL阀RU系列介绍
RU系列阀是一种完全且易于调节的非补偿流量控制阀，可用于仪表测输入（端口A连接到执行器入口）或仪表测输出（端口B连接到执行器出口，以控制来自执行器的油流量）。
易于安装和调整，使它适合于许多电路和许多需要非补偿流量控制的应用。
The RU Series valve is a fully and easily adjustable non-compensated flow control which can be employed for meter-in (Port A connected to the actuator inlet) or meter-out (Port B connected to the actuator outlet in order to control the oil flow from the actuator).
The easiness of installation and of adjustment make it suitable for many circuits and many applications where a non-compensated flow control is desired.

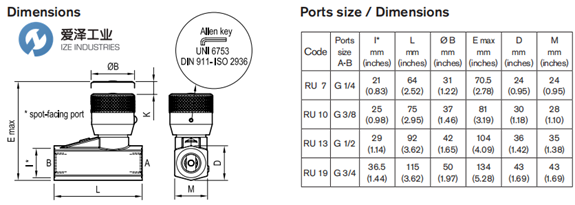

REXROTH OIL CONTROL阀RU系列技术尺寸

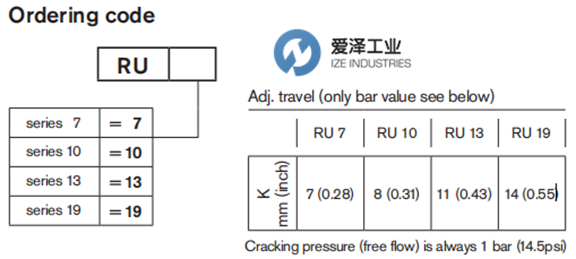

REXROTH OIL CONTROL阀RU系列选型
REXROTH OIL CONTROL阀RU系列其他常用型号：
REXROTH OIL CONTROL RU7 R932500550
REXROTH OIL CONTROL RU10 R932500552
REXROTH OIL CONTROL RU13 R932500553
REXROTH OIL CONTROL RU19 R932500554
