REXROTH OIL CONTROL阀VEI-8A-10-NC系列技术参数
Technical data | |
General | |
Weight | 0.16 kg (0.35 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 2 - 70 l/min (0.5 - 18 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 44 - 56 Nm (33 - 42 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit – version 1 | code RG10A2010520100 |
Seal kit – version 2-3 | code RG10A2010530100 |
Seal kit coil | code RG12A1PNBR7010 |
Electrical | |
Type of voltage DC voltage | DC voltage |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Note: Coils must be ordered separately | |
REXROTH OIL CONTROL阀VEI-8A-10-NC系列介绍
先导式电磁阀式提升阀
2路常闭
普通腔，尺寸10
Solenoid operated valves pilot operated poppet type
2-way normally closed
Common cavity, Size 10

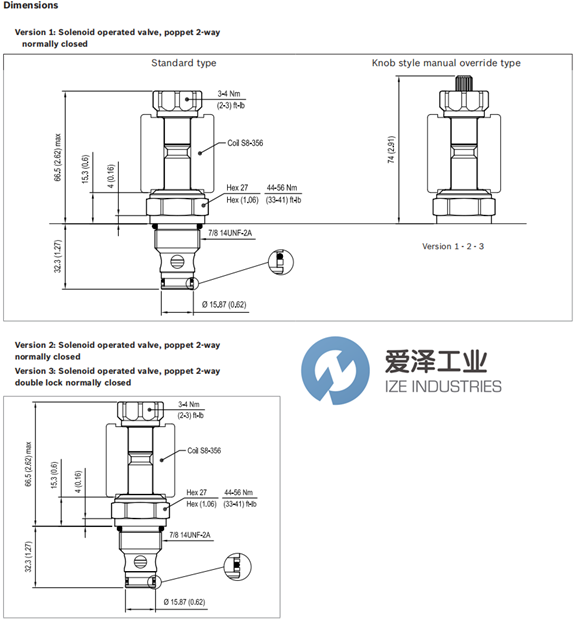

REXROTH OIL CONTROL阀VEI-8A-10-NC系列尺寸图

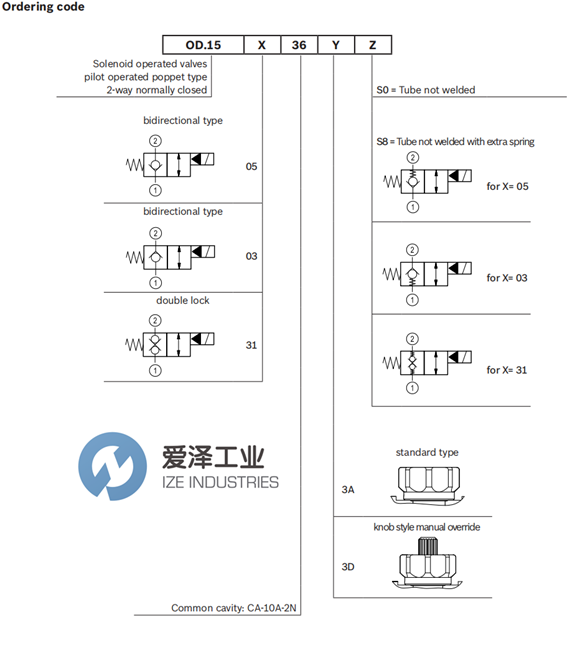

REXROTH OIL CONTROL阀VEI-8A-10-NC系列选型
REXROTH OIL CONTROL阀VEI-8A-10-NC系列其他常用型号：
REXROTH OIL CONTROL OD1503363AS000 R901091113
REXROTH OIL CONTROL OD1503363AS800 R901091114
REXROTH OIL CONTROL OD1503363DS000 R934004878
REXROTH OIL CONTROL OD1503363DS800 R901109956
REXROTH OIL CONTROL OD1505363AS000 R901090947
REXROTH OIL CONTROL OD1505363AS800 R901090945
REXROTH OIL CONTROL OD1505363DS000 R901080482
REXROTH OIL CONTROL OD1505363DS800 R901109969
REXROTH OIL CONTROL OD1531363AS000 R901091166
REXROTH OIL CONTROL OD1531363AS800 R901109984
REXROTH OIL CONTROL OD1531363DS000 R901091167
REXROTH OIL CONTROL OD1531363DS800 R901109985
