REXROTH OIL CONTROL阀GSU1系列技术参数
Max. operating pressure | bar (psi) 300 (4300) |
Fluid temperature range | -30 to 100 (-22 to 212)°C (°F) |
Weight | 0.009 (0.02) kg (lbs) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) ISO 4406 20/18/15 |
Installation | No restrictions |
REXROTH OIL CONTROL阀GSU1系列介绍
“B-A”流量受到校准孔口的限制，而“A-B”流量始终允许通过内置的止回阀。 不提供压力补偿，流量取决于压降和粘度。
GSU1滤芯有不同的孔口尺寸可供选择。
The “B-A” flow is restricted by a calibrated orifice while flow “A-B” is always allowed through the incorporated check valve. Pressure compensation is not provided and flow depends from pressure drop and viscosity.
The GSU1 cartridge is available in different orifice sizes.

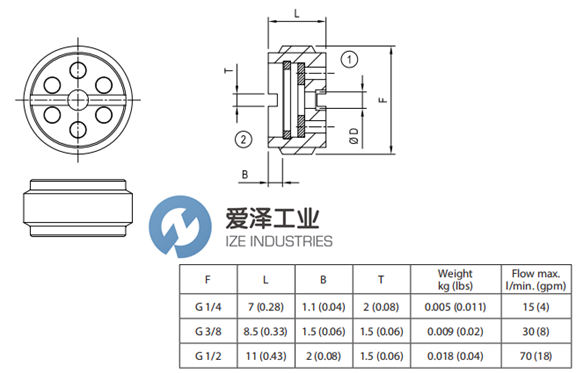

REXROTH OIL CONTROL阀GSU1系列技术尺寸

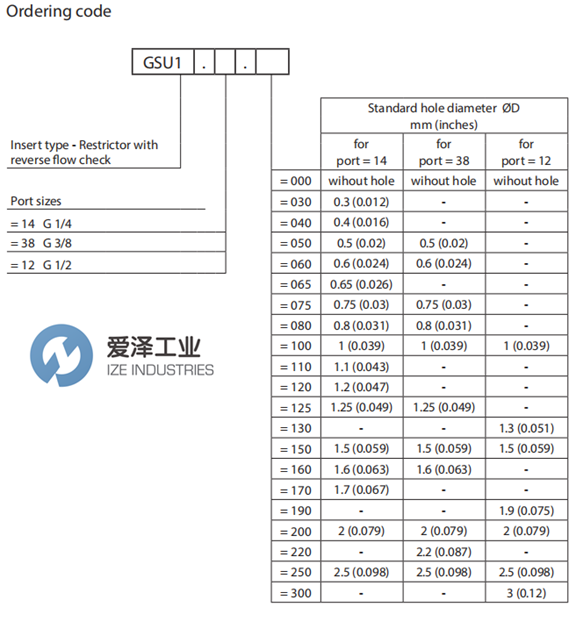

REXROTH OIL CONTROL阀GSU1系列选型
REXROTH OIL CONTROL阀GSU1系列其他常用型号：
REXROTH OIL CONTROL GSU1.38.075 R932500227
REXROTH OIL CONTROL GSU1.38.080 R932500228
REXROTH OIL CONTROL GSU1.38.100 R932500229
REXROTH OIL CONTROL GSU1.38.125 R932500230
REXROTH OIL CONTROL GSU1.38.150 R932500231
REXROTH OIL CONTROL GSU1.38.160 R932500232
REXROTH OIL CONTROL GSU1.38.200 R932500233
REXROTH OIL CONTROL GSU1.38.220 R932500234
REXROTH OIL CONTROL GSU1.38.250 R932500235
REXROTH OIL CONTROL GSU1.12.000 R932500208
REXROTH OIL CONTROL GSU1.12.100 R932500209
REXROTH OIL CONTROL GSU1.12.130 R932500827
REXROTH OIL CONTROL GSU1.12.150 R932500814
REXROTH OIL CONTROL GSU1.12.190 R932500828
REXROTH OIL CONTROL GSU1.12.200 R932500815
REXROTH OIL CONTROL GSU1.12.250 R932500210
REXROTH OIL CONTROL GSU1.12.300 R932500816
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀GSU1.38.200 R932500233的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀GSU1.38.200 R932500233技术参数
