SUNFAB泵SVH-092 RDYN-1-P/ZL-2-270技术参数

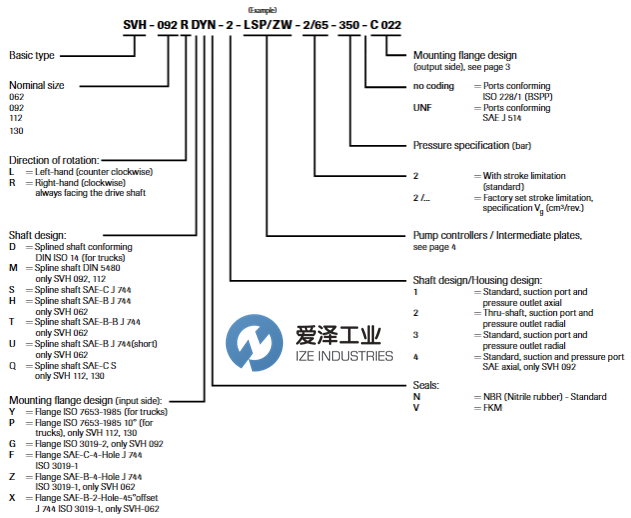

Basic type | SVH |
Nominal size | 092 |
Direction of rotation | R = Right-hand (clockwise) always facing the drive shaft |
Shaft design | D = Splined shaft conforming DIN ISO 14 (for trucks) |
Mounting flange design (input side) | Y = Flange ISO 7653-1985 (for trucks) |
Seals | N= NBR (Nitrile rubber) - Standard |
Shaft design/Housing design | 1 = Standard, suction port and pressure outlet axial |
Pump controllers / Intermediate plates | P = Pressure controller, adjustable directly at the pump. The Pressure controller automatically maintains a constant system pressure independant of the required flow. Therefore it is suited for constant pressure systems, where differing flow is required or as efficient pressure limitation of the hydraulic system |
2 = With stroke limitation (standard) | |
Pressure specification (bar) | 270 |
SUNFAB泵SVH系列介绍
Sunfab 可变排量泵结构坚固，专为直接安装在商用车的辅助驱动装置 (PTO) 上而设计。
其最大排量为 130 cm³/rev，峰值压力为 450 bar，适用于多种应用。
此外，该泵还具有高自吸能力和低噪音。泵的输送流量取决于当前的驱动转速和几何排量。流量可在 0 至 Qmax 范围内调节。
由于斜盘轴承壳采用加压润滑，因此可确保较长的使用寿命。
Sunfab SVH 与旋转方向有关，应按右手或左手设计订购。
Sunfab SVH 的其他优势：
• 流量重置响应时间短
• 安装尺寸紧凑
• 允许更高的工作压力
• 外部排水，冷却效果更佳
• 结构坚固耐用，使用寿命长
• 噪音低
• 功率重量比高
The Sunfab variable displacement pump with its rugged construction is designed for direct mounting at the auxiliary drive (P.T.O.) of commercial vehicles.
With a max. displacement of 130 cm3/rev. and a peak pressure of 450 bar it is suited for many applications.
This is complemented by the high self priming rate and the low noise level. The pump delivery flow is dependent on the present drive speed and geometric displacement.The flow is adjustable in a range between 0 and Qmax.
Long service life is ensured due to the pressurized lubrication of the swash plate bearing shell.
Sunfab SVH is rotation-direction dependent and should be ordered in either right-hand or left-hand designs.
Other advantages of Sunfab SVH:
• Short reaction time when resetting the flow
• Compact installation dimensions
• High working pressure level allowed
• Externally drained for best cooling
• Rugged construction and long service life
• Low noise emission
• High power-to-weight-ratio
SUNFAB泵SVH系列选型
SUNFAB泵SVH系列其他常用型号：
SUNFAB SVH-092 RDYN-1-P/ZL-2-270
SUNFAB SVH 130L RDYN-1-LSP/L-2-350
SUNFAB SVH-130 LDYN-1-0-LSNR-L-350
SUNFAB SVH-130 RDYN-1-LSNR/L-350
SUNFAB SVH-130 LDYN-1-LSP/L-2-350
SUNFAB SVH-130 LDYN-1-LSP-2-350
SUNFAB SVH-112 RDYN-1-LSP-2-350
SUNFAB SVH-112 LDYN-1-LSP-2-350
SUNFAB SVH-092 LDYN-1-LSP-2-350
