SUNFAB泵SVH-112 RDYN-1-LSP-2-350技术参数
Basic type | SVH |
Nominal size | 112 |
Direction of rotation: | R= Right-hand (clockwise) always facing the drive shaft |
Shaft design: | D = Splined shaft conforming DIN ISO 14 (for trucks) |
Mounting flange design (input side): | Y = Flange ISO 7653-1985 (for trucks) |
Seals: | N = NBR (Nitrile rubber) - Standard |
Shaft design/Housing design: | 1 = Standard, suction port and pressure outlet axia |
Pump controllers / Intermediate plates | LSP = Load-Sensing controller with integrated pressure limitation |
2 = With stroke limitation (standard) | |
Pressure specification (bar) | 350 |
SUNFAB泵SVH系列介绍
Sunfab 变量泵结构坚固，设计用于直接安装在商用车的辅助驱动装置 (P.T.O.) 上。
最大排量为 130 cm3/rev。 峰值压力为 450 bar，适合多种应用。 高自吸率和低噪音水平补充了这一点。 泵的输送流量取决于当前的驱动速度和几何排量。 流量可在 0 至 Qmax 范围内调节。
斜盘轴瓦的加压润滑确保了较长的使用寿命。
Sunfab SVH 与旋转方向相关，应以右手或左手设计订购。
• 重置流量时反应时间短
• 安装尺寸紧凑
• 允许高工作压力水平
• 外部排水以实现最佳冷却
• 结构坚固，使用寿命长
• 低噪音排放
• 高功率重量比
The Sunfab variable displacement pump with its rugged construction is designed for direct mounting at the auxiliary drive (P.T.O.) of commercial vehicles.
With a max. displacement of 130 cm3/rev. and a peak pressure of 450 bar it is suited for many applications. This is complemented by the high self priming rate and the low noise level. The pump delivery flow is dependent on the present drive speed and geometric displacement. The flow is adjustable in a range between 0 and Qmax.
Long service life is ensured due to the pressurized lubrication of the swash plate bearing shell.
Sunfab SVH is rotation-direction dependent and should be ordered in either right-hand or left-hand designs.
• Short reaction time when resetting the flow
• Compact installation dimensions
• High working pressure level allowed
• Externally drained for best cooling
• Rugged construction and long service life
• Low noise emission
• High power-to-weight-ratio

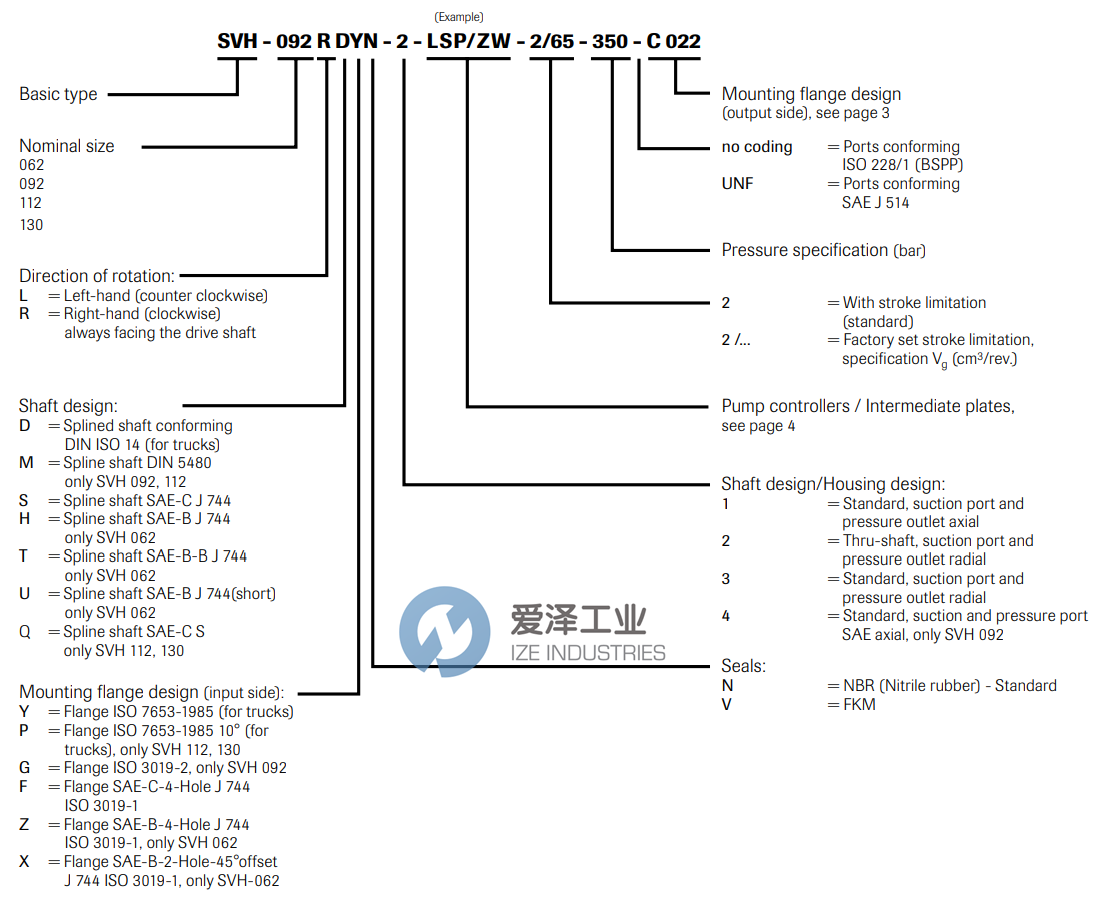

SUNFAB泵SVH系列选型
SUNFAB泵SVH系列其他常用型号：
SUNFAB SVH 130L RDYN-1-LSP/L-2-350
SUNFAB SVH-130-LDYN-1-0-LSNR-L-350
SUNFAB SVH-130-RDYN-1-LSNR/L-350
SUNFAB SVH-130 LDYN-1-LSP/L-2-350
SUNFAB SVH-130LDYN-1-LSP-2-350
SUNFAB SVH-112 RDYN-1-LSP-2-350
SUNFAB SVH-112 LDYN-1-LSP-2-350
SUNFAB SVH-092 LDYN-1-LSP-2-350
