MAXILIFT提升机铲斗MAXI-TUFF AA14X8 技术参数

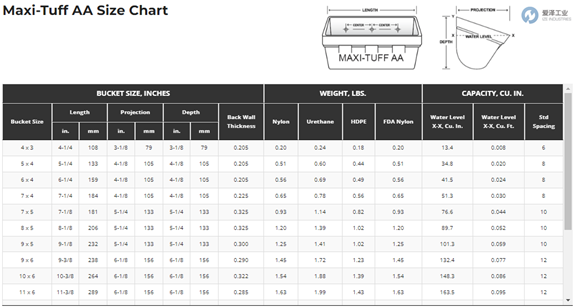

BUCKET SIZE, INCHES | |
Bucket Size | 14×8 |

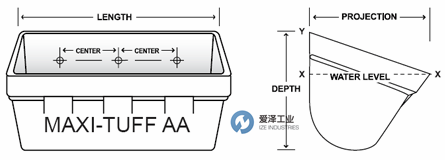

Length | 14-3/8 (365) |
Projection | 8-1/8 (206) |
Depth | 8-1/8 (206) |
Back Wall Thickness | 0.455 |
WEIGHT, LBS. | |
Nylon | 4.12 |
Urethane | 4.93 |
HDPE | 3.64 |
FDA Nylon | 4.12 |
CAPACITY, CU. IN. | |
Water Level X-X, Cu. In. | 351.5 |
Water Level X-X, Cu. Ft. | 0.204 |
Std Spacing | 16 |
MAXILIFT提升机铲斗MAXI-TUFF AA系列介绍
Maxi-Tuff AA离心式提升机铲斗具有铸铁铲斗的传统形状。该铲斗具有重型加固唇缘和角部,后壁加厚以提高安装强度。标准间距为投影 x 2。最常见的应用包括处理石头、沙子、砾石、煤、肥料、粘土、盐、石灰石和混凝土。Maxi-Tuff AA铲斗是适用于坚韧、磨蚀性工业应用的优质铲斗。
The Maxi-Tuff AA centrifugal elevator bucket has the traditional shape of a cast iron bucket. This bucket has a heavy reinforced lip and corners with a thickened back wall for mounting strength. Standard spacing is projection x 2. The most common applications include handling stone, sand, gravel, coal, fertilizer, clay, salt, limestone and concrete. The Maxi-Tuff AA bucket is the best bucket for tough, abrasive industrial applications.
MAXILIFT提升机铲斗MAXI-TUFF AA系列选型
MAXILIFT提升机铲斗MAXI-TUFF AA系列其他常用型号:
MAXILIFT MAXI-TUFF AA4X3
MAXILIFT MAXI-TUFF AA5X4
MAXILIFT MAXI-TUFF AA6X4
MAXILIFT MAXI-TUFF AA7X4
MAXILIFT MAXI-TUFF AA7X5
MAXILIFT MAXI-TUFF AA8X5
MAXILIFT MAXI-TUFF AA9X5
MAXILIFT MAXI-TUFF AA10X6
MAXILIFT MAXI-TUFF AA11X6
MAXILIFT MAXI-TUFF AA12X6
MAXILIFT MAXI-TUFF AA12X7
MAXILIFT MAXI-TUFF AA14X7
MAXILIFT MAXI-TUFF AA14X8
MAXILIFT MAXI-TUFF AA16X8
MAXILIFT MAXI-TUFF AA18X8
MAXILIFT MAXI-TUFF AA18X10
MAXILIFT industrial elevator bucket NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MAXILIFT提升机铲斗MAXI-TUFF AA14X8的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for MAXILIFT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
MAXILIFT提升机铲斗MAXI-TUFF AA系列MAXI-TUFF AA14X8 技术参数及选型
