MAXILIFT提升机铲斗HD-MAX HD14X8技术规格

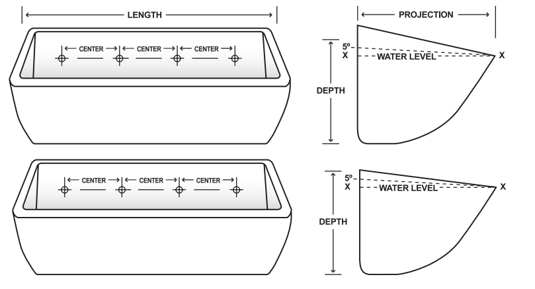

BUCKET SIZE, INCHES |
| |
BUCKET SIZE | 14 x 8 | |
Length | 14-1/2 | |
Proj. | 8-3/4 | |
Depth | 8 | |
Back Wall Thickness | 0.40 | |
PUNCHING, IN | ||
Centers | 3 | |
# of Holes | 5 | |
Bolt Size | 5/16 | |
Top Down | 2 | |
WEIGHT, LBS. | ||
HDPE | 3.86 | |
Nylon | 4.44 | |
Uret | 5.21 | |
CAPACITY, CU. IN. | ||
Water Leve | 465.00 | |
Useable 5 Deg | 502.80 | |
Useable 5 Deg | 10 | |
SIZE* | ||
Depth | 6-3/4 | |
CAPACITY | ||
Useable 5 Deg | 502.80 | |
Std Spacing | 7 |
MAXILIFT提升机铲斗HD-MAX系列介绍
The HD-MAX Heavy Duty elevator bucket is a perfect marriage between durable design and economical pricing. This bucket is designed with thicker walls and reinforced front corners and lip to increase bucket life and reduce breakage.The HD-MAX bucket stands second only to the Tiger-Tuff in strength and thickness. It is a favorite among bucket elevator manufacturers for its extra capacity and durability.
Minimum spacing is nominal projection plus 1”. The recommended belt width for a single row of buckets is actual bucket width plus 2”.
HD-MAX Low Profile Option
A reduced height for closer vertical spacing allows more buckets per foot of elevator belt. When upgrading to HD-Max Low Profile buckets, horsepower requirements must be evaluated due to increased capacity.
Other Considerations
DRILLING: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.
VENTING: Available as needed. See venting options in our catalog.
DIGGER BUCKETS: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.
SPACING: See elevator bucket spacing details in the size chart (depending on materials and speeds, smaller and larger spacing may be used).
INSTALLATION: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers.
FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products.
HD-MAX 重型提升斗是耐用设计和经济定价的完美结合。该铲斗设计有较厚的壁和加固的前角和唇缘，以延长铲斗寿命并减少破损。HD-MAX 铲斗的强度和厚度仅次于 Tiger-Tuff。它因其额外的容量和耐用性而受到斗式提升机制造商的喜爱。
最小间距是标称投影加 1 英寸。单排铲斗的推荐皮带宽度为实际铲斗宽度加上 2 英寸。
HD-MAX 薄型选项
降低高度以获得更接近的垂直间距允许每英尺电梯皮带有更多的铲斗。升级到 HD-Max 薄型铲斗时，由于容量增加，必须评估马力要求。
其他注意事项
钻孔：电梯铲斗的制造没有钻孔模式。可根据客户要求进行特殊钻孔或冲孔。
通风：根据需要提供。请参阅我们目录中的排气选项。
挖掘机铲斗：使用稍大的金属挖掘机提升铲斗帮助松动电梯引导部分中已经凝固或硬化的材料，从而减少塑料铲斗的磨损。致电了解有关 Metal Digger 提升机铲斗选项的详细信息。
间距：参见尺寸表中的提升机斗间距详细信息（根据材料和速度，可以使用更小和更大的间距）。
安装：使用 #1 标准升降螺栓或 Sabre-Tooth 升降螺栓进行安装。设计用于挡泥板或平垫圈和锁紧垫圈以及六角或锁紧螺母。如果铲斗安装在链条上，请使用六角头螺栓、螺母和垫圈。
FDA：聚氨酯和聚乙烯均按照 FDA 规范设计，可直接接触食品。
