HENGSTLER编码器RI76TD系列技术参数
Housing diameter | 76 mm |
Flange(Mounting of housing) | Tether |
Mounting of shaft | Front clamping ring, Rear clamping ring |
Protection class shaft input(EN 60529) | IP40 or IP64 (front & rear) |
Protection class housing(EN 60529) | IP65 |
Max. speed | for Ø 15 ... 25 mm at 70 °C and IP64: max. 3600 rpm |
Starting torque typ. | 3 …. 10 Ncm (depending on version) |
Moment of inertia | approx. 140 …. 420 gcm2 (depending on version) |
Vibration resistance(DIN EN 60068-2-6) | 100 m/s2 (10 - 2000 Hz) |
Shock resistance(DIN EN 60068-2-27) | 1000 m/s2 (6 ms) |
Operating temperature | -25 °C ... +100 °C |
Storage temperature | -25 °C ... +100 °C |
Material housing | Aluminum |
Weight | approx. 320 … 580 g (depending on version) |
Connection | Cable, radial |
Supply voltage | RS422 + Sense (T): DC 5 V ±10 % |
Current w/o load typ. | 60 mA (DC 5 V), 60 mA (DC 10 V), 35 mA (DC 24 V) |
Max. pulse frequency | RS422: 300 kHz |
Pulse width error | ± max. 25° electrical |
Number of pulses | 1 ... 10,000 |
Alarm output | NPN-O.C., max. 5 mA |
Pulse shape | Square wave |
Pulse duty factor | 1:1 |
HENGSTLER编码器RI76TD系列介绍
通过空心轴Ø15至42mm
外径只有76毫米
通过前或后夹紧环便于安装
工作温度高达100℃
应用范围：电机、印刷机、升降机
10000个脉冲“真读”
通过报警-信号监测状态
Through hollow shaft Ø 15 to 42 mm
Outside diameter only 76 mm
Easy installation by means of clamping ring front or rear
Operating temperature up to 100°C
Applications: motors, printing machines, lifts
10,000 pulses “true-read”
Condition Monitoring through Alarm– Signal

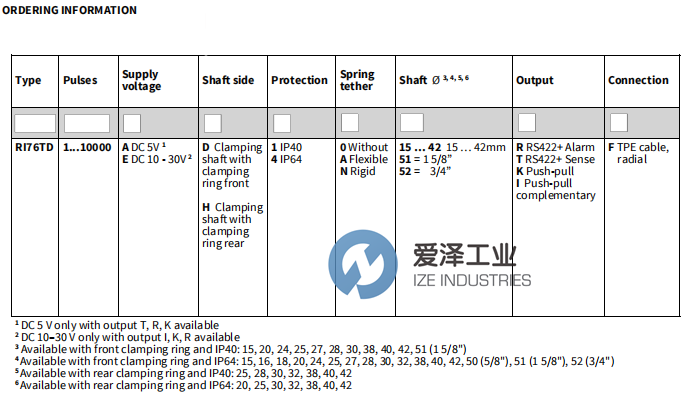

HENGSTLER编码器RI76TD系列选型
HENGSTLER编码器RI76TD系列其他常用型号：
HENGSTLER RI76TD/1024ED.4A30IF
HENGSTLER RI76TD/1024AD.XA40TX-S
HENGSTLER RI76TD/2048EH.1N40RF
HENGSTLER RI76TD/600ED.4A51RF
HENGSTLER RI76TD/720ED.4A25KF
HENGSTLER RI76TD/1024AD.4X25RX-S
HENGSTLER RI76TD/1024ED.4X25IX-S
HENGSTLER RI76TD/2048ED.4N16IF
HENGSTLER RI76TD/2500EH.1A40KF
HENGSTLER RI76TD/720ED.4A15KF-P0
HENGSTLER RI76TD/2048ED.4X24IF-S
