HENGSTLER编码器RI76TD/2048AD.4N30RF-K0技术参数
RI76TD |
脉冲数:2048 |
A:直流 5V |
D:带前夹紧环的夹紧轴 |
4:IP 64 |
N:刚性 |
30:30mm |
R:RS 422+ 报警 |
F:TPE 电缆,径向 |
K0:10 m |
HENGSTLER编码器RI76TD系列介绍
通过空心轴Ø15至42mm
外径只有76毫米
通过前或后夹紧环便于安装
工作温度高达100℃
应用范围:电机、印刷机、升降机
10000个脉冲“真读”
通过报警-信号监测状态
Through hollow shaft Ø 15 to 42 mm
Outside diameter only 76 mm
Easy installation by means of clamping ring front or rear
Operating temperature up to 100°C
Applications: motors, printing machines, lifts
10,000 pulses “true-read”
Condition Monitoring through Alarm– Signal

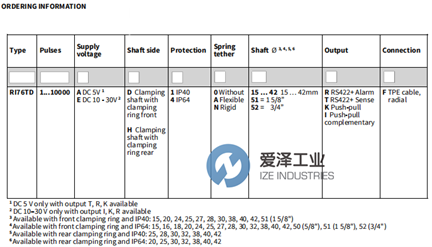

HENGSTLER编码器RI76TD系列选型
HENGSTLER编码器RI76TD系列其他常用型号:
HENGSTLER RI76TD/2048AD.4N30RF-K0
HENGSTLER RI76TD/1024AD.XA40TX-S
HENGSTLER RI76TD/2048EH.1N40RF
HENGSTLER RI76TD/600ED.4A51RF
HENGSTLER RI76TD/720ED.4A25KF
HENGSTLER RI76TD/1024AD.4X25RX-S
HENGSTLER RI76TD/1024ED.4X25IX-S
HENGSTLER RI76TD/2048ED.4N16IF
HENGSTLER RI76TD/2500EH.1A40KF
HENGSTLER RI76TD/720ED.4A15KF-P0
HENGSTLER RI76TD/2048ED.4X24IF-S
HENGSTLER encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HENGSTLER编码器RI76TD/2048AD.4N30RF-K0的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for HENGSTLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
