TRICO油杯40394参数特性
With Wire Guard | 40394 |
|
Without Wire Guard | 30010 | |
Capacity | 16OZ. | |
Connection (NPT) | 1/4 | |

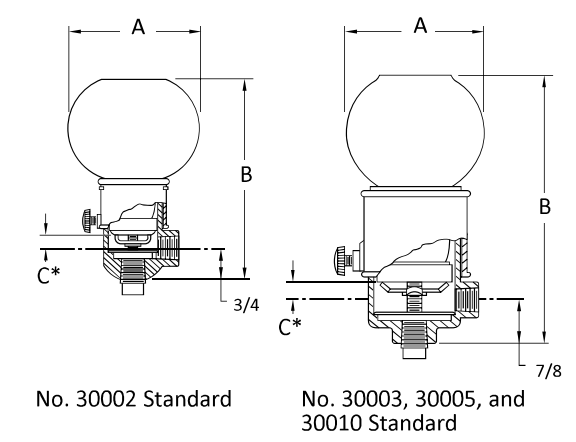

Dimensions (in.) | ||
A | 4-1/8 | |
B Min. | 6-13/16 | |
B Max. | 7-9/16 | |
C Min. | 9/32 | |
C Max. | 1 |
TRICO油杯描述说明
Opto-Matic Oilers provide an inexpensive method to automatically maintain a constant level of oil in a pump bearing housing, gear box, or other oil sump applications. Throughout processing industries, the Opto-Matic Oiler is the industry standard. Different reservoir capacities allow use in many applications.
Stainless steel models provide long life in corrosive environments in the chemical, pulp and paper, and mining industries.
FEATURES
●One piece glass reservoir ensures proper constant level function. Compared to competitive models, there is no possibility of air leakage that would cause overfilling of the bearing housing.
●Adjustable level setting allows use in many applications
●Multiple air vent slots provide for proper functioning at all times
●Large surge chamber helps prevent overflow of oil during machine start-up or shut-down
●Side and bottom connections for simplified installation
Opto-Matic 注油器提供了一种廉价的方法来自动保持泵轴承箱、齿轮箱或其他油底壳应用中的恒定油位。 在整个加工行业中，Opto-Matic 涂油器是行业标准。 不同的储层容量允许在许多应用中使用。
不锈钢型号在化学、纸浆和造纸以及采矿业的腐蚀性环境中具有较长的使用寿命。
特征
●一体式玻璃水槽确保适当的恒定液位功能。 与竞争型号相比，不存在导致轴承座过度填充的空气泄漏的可能性。
●可调节的水平设置允许在许多应用中使用
●多个通风孔确保始终正常运行
●大调压室有助于防止机器启动或关闭期间的油溢出
●简化安装的侧面和底部连接
TRICO油杯其他常见型号：
TRICO 40391
TRICO 40061
TRICO 40291
TRICO 40394
TRICO AL OILERS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TRICO油杯40394的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
