MURPHY压力表45APE系列

打印 Print 分享 Share
请注意:照片可能并不是实际产品,具体请参阅标题和产品规格及所有细节描述。
产品品牌：
型号：45APE-S-100
FW MURPHY压力表45APE-S-100
预估货期：
提交询价
关  键  词：FWMURPHYFW MURPHY压力表45APE-S-10045APE-S-20045AP
相似产品：
是否有问题？联系我们工作人员
  邮件联系

FW MURPHY压力表45APE系列技术参数

Dial:

White on black, dual scale, psi and kPa standard, 4-1/2 in. (114 mm) diameter

Case:

Die cast aluminum, surface or panel mount

Overrange:

Do not exceed 10% FS above full range

Process Connection:

1/4 NPTM thru 1000 psi; 1/2 NPTM 1,500 - 5,000 psi; back connection optional

Sensing Element:

Bronze or 316 stainless steel bourdon tube

Gage Accuracy:

Indicating pointer within switch points with hysteresis of <1%:
±2% for first and last quarters of scale;
middle half of scale is ±1%.
Indicating pointer above or below trip point:

45APE/45APEF Series Accuracy Outside Switch Points (accuracy above or below trip point)

PSI Range

Accuracy

< 100

10

100-300

4

400-1500

2

2000

12

3000-5000

8

Reading based on testing performed with switch point at mid scale which represents worst case.

Pressure Relief Disc:

Back of case (except EX models)

Switch Reset Deadband: Approximately 10% FS


Switch Point Accuracy:

±1.5%

Snap-Acting Switches:

2-SPDT; 2 A @ 250 VAC

Wire Connections (Surface Mount):

1/2 NPTF conduit entry with terminal block

Wire Connections (Panel Mount):

Wire leads, 18 AWG (1.0 mm2) x 9 in. (229 mm) long

Weight:

5 lbs 6 oz (2.4 kg) approximately

Explosion-proof models:

21 lb. (9.5 kg) approx.

Dimensions:

10 x 9 x 6 in. (254 x 229 x 152 mm) approximately

Explosion-proof models:

12 x 12 x 9 in (305 x 305 x 229 mm) approximately

CSA Certified Models:

Explosion-proof EX models with pressure range thru 5000 psig (34.4 MPa) [344 bar] are CSA approved for Hazardous locations Class I, Groups, C & D.

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。 本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。 本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

FW MURPHY压力表45APE系列介绍

45APE 系列表压仪表是一种用于压力指示的机械表压计。它包括两个可调 SPDT 开关。这些微动开关可用于启动和停止、触发警报和关闭设备。范围从 30 psi (207 kPa) [2.06 bar] 到 5,000 psi (34.48 MPa) [344.73 bar]。



45APE 系列采用带不锈钢双扇形齿轮运动的波登管传感装置。当对布尔登管施加压力时，每个扇区都会驱动单独的指针。指示指针（可见指针）显示实际压力读数，包括低于和高于低和高触发点。低和高触发点可在量规前透镜上独立调节。开关操作指针（在刻度盘后面）被校准以跟随指示指针。低和高跳闸点指示器停止开关操作指针。当压力通过空转原理减小或增大时，相应的速动开关将跳闸。



45APE 系列型号广泛用于需要压力指示和 Form C 低压和高压开关的应用。



• 带独立低速和高速微动开关的组合指示表

• 现场可调且高度可见的低压和高压跳变点指示器

• 双扇形齿轮运动允许全量程指示和设定点控制

• 提供面板和表面贴装版本

• 提供锁存控制继电器版本



The 45APE Series gage instrument is a mechanical gage for pressure indication. It includes two adjustable SPDT switches. These snap-acting switches can be used for start and stop, to trip alarms and to shut down equipment. Ranges are available from 30 psi (207 kPa) [2.06 bar] thru 5,000 psi (34.48 MPa) [344.73 bar].



The 45APE Series utilizes a bourdon tube sensing unit with a stainless steel dual-sector geared movement. Each of the sectors drives separate pointers when pressure is applied to the bourdon tube. The indicating pointer (visible pointer) shows actual pressure reading, including below and beyond the low and high trip points. The low and high trip points are adjustable independently on the gage front lens. The switch operator pointer (behind the dial) is calibrated to follow the indicating pointer. The low and high trip point indicators arrest the switch operator pointer. As pressure decreases or increases through the principal of lost motion, the respective snapswitch is tripped.



The 45APE Series models are widely used in applications requiring pressure indication and Form C low and high pressure switches.



• Combination Indicating Gage with Independent Low and High Snap-Acting Switches

• Field-Adjustable and Highly Visible Low and High Pressure Trip Point Indicators

• Dual-Sector Geared Movement Allows for Full-Scale Indication and Set Point Control

• Panel and Surface Mount Versions Available

• Latching Control Relay Versions Available

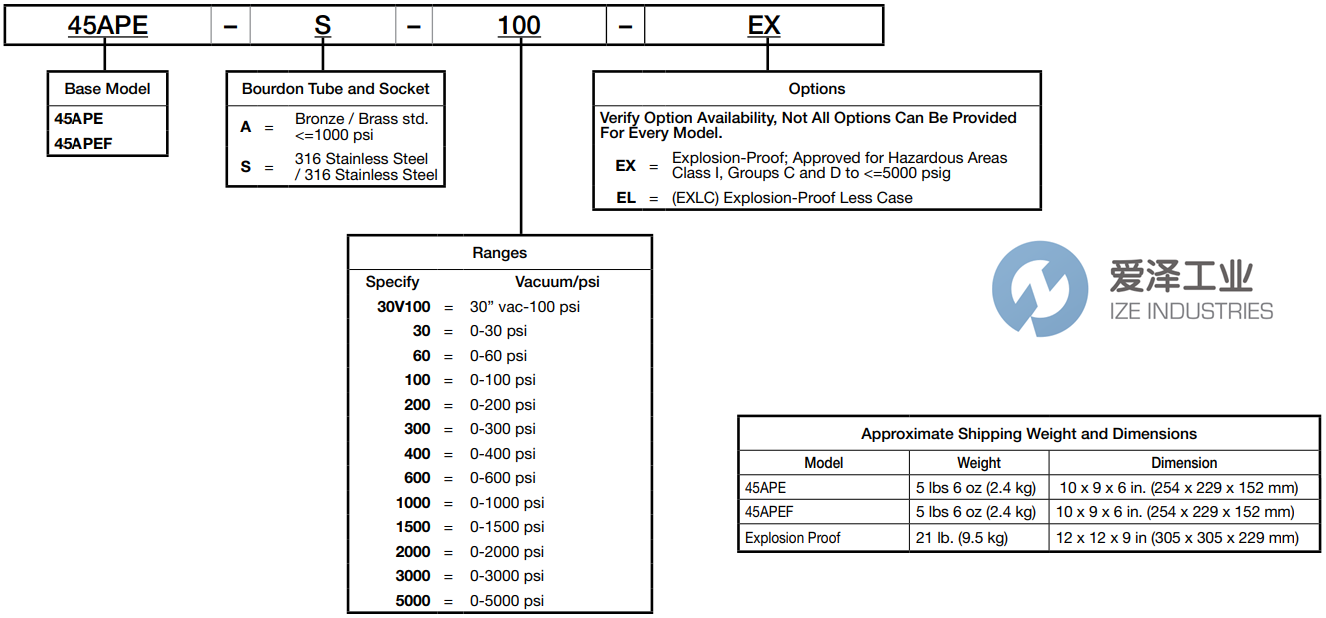

FW MURPHY压力表45APE系列选型

FW MURPHY压力表45APE-S-100 爱泽工业 ize-industries (2).png



FW MURPHY压力表45APE系列其他常用型号：

FW MURPHY 45APE-S-30V100

FW MURPHY 45APE-S-100-EX

FW MURPHY 45APE-S-30

FW MURPHY 45APE-S-60

FW MURPHY 45APE-S-100

FW MURPHY 45APE-S-200

FW MURPHY 45APE-S-300

FW MURPHY 45APE-S-400

FW MURPHY 45APE-S-600

FW MURPHY 45APE-S-1000

FW MURPHY 45APE-S-1500

FW MURPHY 45APE-S-2000

FW MURPHY 45APE-S-3000

FW MURPHY 45APE-S-5000



FW MURPHY Pressure Gage NEW + ORIGINAL+ ONE YEAR WARRANTY
