规格描述

GF电极2724-2726系列技术参数

Specifications
General
Compatibility:	2750 Sensor Electronics (for 8900, 9900, 4 to 20 mA or Profibus Concentrator 2760 Preamp (8750)
Tip Design:	Bulb
HF Resistant	< 2% HF
Operating Range:	pH: 0 to 14 pH ORP: +/1 2000 mV
Process Connection:	3/4", for use in reducing tees up to 4"
Temperature Sensor:	PT1000 Versions: Compatible with Signet 2750 pH/ORP sensor electronics for connection to a PLC or the the Signet 8900 or 9900 instruments. 3K Ohm Balco versions: Compatible with the Signet 2760 pH/ORP preamp for connection to the Signet 8750 ph/ORP transmitter also compatible with the 2750 pH/ORP Sensor Electronics.
Wetted Materials	pH: Ryton (PPS), glass, UHMW, PE, FPM ORP: Ryton (PPS), glass, UHMW, PE, FPM, Platinum
Max Temperature/Pressure Rating
Operating Temperature:	14°F to 185°F
Max Operating Pressure:	100 psi @14 to 150°F, 58 psi @ 150 to 185°F

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

GF电极2724-2726系列介绍

Signet 2724-2726 pH 和 ORP 电极使用独特的防污 DryLoc 连接器。大面积 PE 参比接点和路径的构建可提高总参比效率并确保较长的使用寿命。 DryLoc 连接器具有耐腐蚀镀金触点，可轻松将传感器连接到配套的 2760 前置放大器或 2750 传感器电子器件。坚固的 Ryton 螺纹传感器主体以及平面 pH、球泡 pH 或平面 ORP 传感元件的选择可为各种应用提供广泛的化学和机械兼容性。

特征：

- 安装在 1/2" 至 4" 的 Signet 标准接头中

- 3/4" 无螺纹传感器

- 特殊设计允许以任何角度安装，甚至倒置或水平安装

- Ryton (PPS) 主体适用于广泛的化学兼容性

- 带镀金触点的专利 DryLoc 连接器

- 快速温度响应

The Signet 2724-2726 pH and ORP electrodes feature a patented reference design and uses the unique foul proof patented DryLoc connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life. The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton threaded sensor body and choice of flat pH, bulb pH or flat ORP sensing elements allows a broad range of chemical and mechanical compatibility for a wide variety of applications.

Features:

- Mounts in Signet standard fitting from 1/2" to 4"

- 3/4" NOT threaded sensors

- Special design allows for installation at any angle, even inverted or horizontal

- Ryton (PPS) body for broad range of chemical compatibilty

- Patented DryLoc connector with gold plated contacts

- Quick temperature response

- Bulb and flat HF resistant glass available for trace HF, in less than 2% concentration applications

- Low conductivity sensor available for liquids down to 20 uS/cm

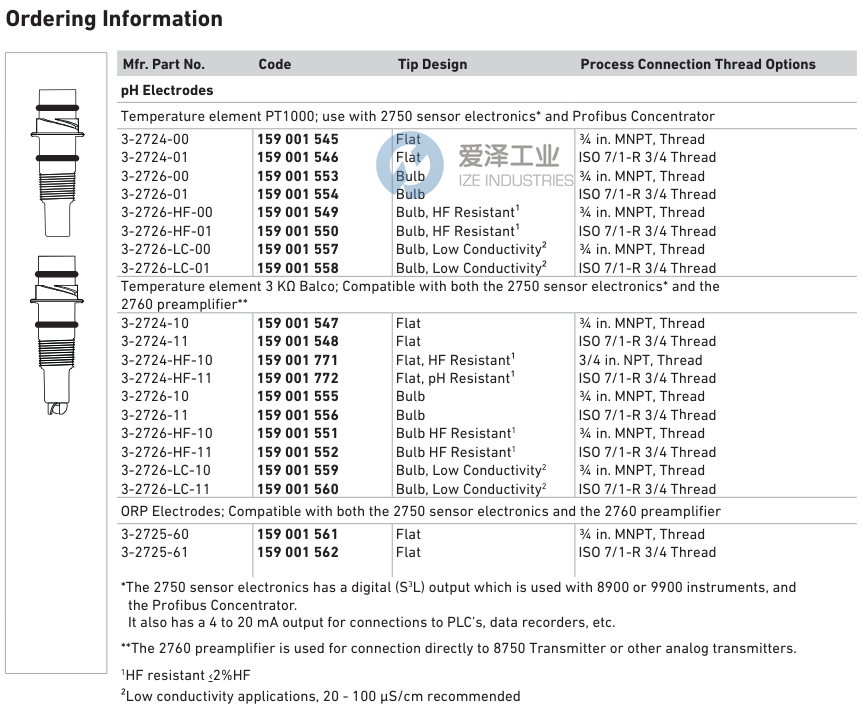

GF电极2724-2726系列选型

GF电极3-2726-HF-00 爱泽工业 ize-industries (2).png

GF电极2724-2726系列其他常用型号：

GF 3-2724-00

GF 3-2724-01

GF 3-2724-10

GF 3-2724-11

GF 3-2725-60

GF 3-2725-61

GF 3-2726-00

GF 3-2726-01

GF 3-2726-10

GF 3-2726-11

GF 3-2726-HF-00

GF 3-2726-HF-01

GF 3-2726-HF-10

GF 3-2726-HF-11

GF 3-2726-LC-00

GF 3-2726-LC-01

GF 3-2726-LC-10

GF 3-2726-LC-11

GF 3-2724-HF-10

GF 3-2724-HF-11

GF ELECTRODES NEW + ORIGINAL+ ONE YEAR WARRANTY
