规格描述

FOXBORO PH/ORP传感器871A系列规格参数

Standard Specifications
Automatic Temperature Compensation (ATC)	100 platinum RTD in -1 and -2 (standard) versions and 1000 platinum RTD in -3 and -4 (intelligent) versions.
Cable Temperature Limit	85°C (185°F)
Sensor Immersion Depth	76 mm (3 in) minimum.
Process Wetted Parts Materials: Body Measuring Electrode pH ORP Reference Electrode O-Ring	PVDF (polyvinylidene fluoride). Flat Glass. Platinum or gold, as specified. Ceramic Junction. EPR (Ethylene Propylene Rubber).
Reference Electrode	Ceramic, double junction with KC1, nonflowing, gelled electrolyte (Ag, AgC1 half cell).
Cable	Integral 3 m (10 ft) No. 22 AWG with stripped and tinned ends. Intelligent sensors have lugs as standard.
Sensor Mounting	1 NPT on both ends with a 1.125-inch wrench flat on body .
Sensor Torque	Maximum torque specification is 31 N•m (23 lb•ft).
Measurement Range pH ORP	2 to 12 pH. (Sensor can be used with transmitters and analyzers that are ranged from 0-14 pH) ±2000 mV.
Mass	0.35 kg (0.75 lb) including cable.
Electromagnetic Compatibility (EMC)	The 871A Sensor, when its cable is connected through rigid metal conduit as recommended to 873PH, 873APH, 873DPX (220 V ac, 240 V ac Metal Enclosures only), 875PH, or 870ITPH Analyzers/Transmitters, complies with the requirements of the European EMC Directive 89/336/EEC.

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

FOXBORO PH/ORP传感器871A系列介绍

871A-1和-2（标准）传感器设计用于873PH和873DPX分析仪，也可以与875PH分析仪和870ITPH变送器一起使用。

871A-3和-4（智能）传感器设计用于875PH智能分析仪和870ITPH智能变送器。它们提供了在线诊断的附加功能，以在出现几种常见传感器故障中的任何一种时向用户发出信号。这些传感器可以通过多种方式安装到过程中。它们在电极和电缆末端都有1英寸的外部NPT连接。传感器可以直接插入到生产线中，也可以通过各种附件将传感器连接到其他标准管道尺寸。通过将传感器电缆端的1英寸NPT连接耦合到所需长度的1英寸管道，然后将组件降低到要监视的过程中，就可以在堰，水渠，池塘和水箱中进行现场安装。

这些传感器采用密封的电极设计，消除了对电极系统完整性的担忧。当与智能分析仪或变送器一起使用时，智能传感器设计可以向用户发送信号，告知其电极系统完整性是否丢失或破坏。所有传感器均经过工厂测试，以确保安装时具有适当的性能。

The 871A-1 and -2 (standard) Sensors are designed for use with 873PH and 873DPX Analyzers.They can also be used with 875PH Analyzers and 870ITPH Transmitters.

871A-3 and -4 (intelligent) Sensors are designed for use with 875PH Intelligent Analyzers and 870ITPH Intelligent Transmitters. They provide the additional capability of on-line diagnostics to signal the user if any of several common sensor faults occur. These sensors may be mounted to the process in a number of ways. They have a 1-inch external NPT connection on both the electrode and cable end. The sensors can be inserted directly into the process line or through a variety of accessories that adapt this connection to other standard pipe sizes. In-situ mounting into weirs, flumes, ponds and tanks is achieved by coupling the 1-inch NPT connection at the cable end of the sensor to the required length of 1-inch pipe and then lowering the assembly into the process being monitored.

These sensors, with their sealed electrode design, eliminate concerns of electrode system integrity.The intelligent sensor design, when used with the intelligent analyzer or transmitter, signals the user if electrode system integrity is lost or destroyed. All sensors are factory tested to ensure proper performance upon installation.

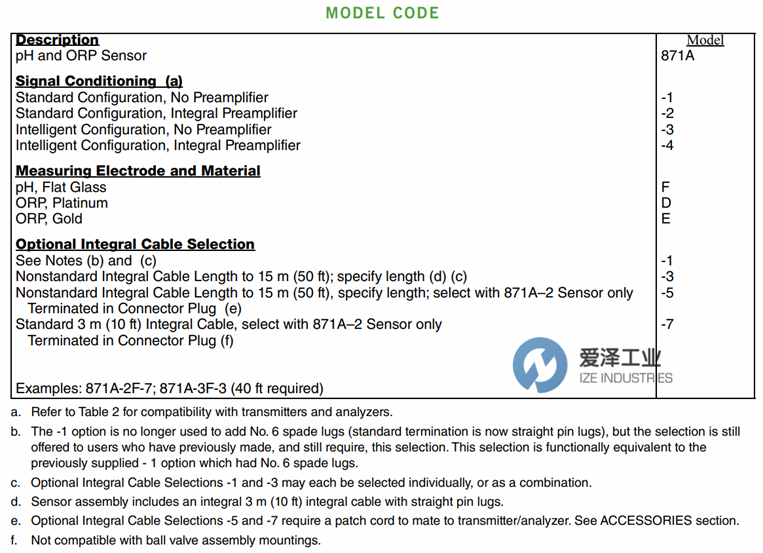

FOXBORO PH/ORP传感器871A系列选型介绍

FOXBORO PH/ORP传感器871A系列其他常用型号：

FOXBORO 871A–1

FOXBORO 871A–2

FOXBORO 871A–3

FOXBORO 871A–4

FOXBORO 871A-1D-1

FOXBORO 871A-1F-3

FOXBORO 871A-2F-1

FOXBORO 871A-4F-3

FOXBORO 871A-2F-3

FOXBORO 871A-2F-7

FOXBORO 871A-2D-1

FOXBORO PH/ORP Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于FOXBORO PH/ORP传感器871A-1F-3的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

FOXBORO PH/ORP传感器871A系列871A-1F-3规格及选型
