PERMA-PURE干燥管MD-110-48P-4产品参数

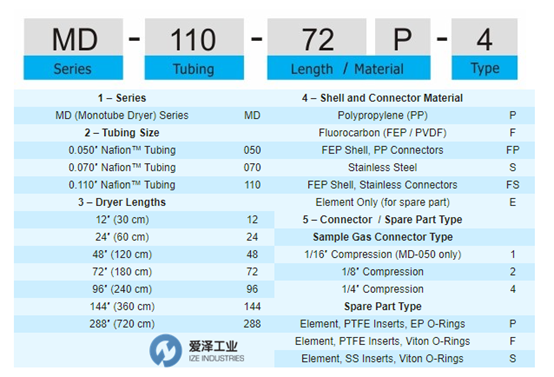

MD: MD (Monotube Dryer) Series |
110: 0.110″ Nafion™ Tubing |
48: 48″ (120 cm) |
P: Polypropylene (PP) |
4: 1/4″ Compression |
PERMA-PURE干燥管MD系列产品介绍及选型
Perma Pure MD系列气体样品干燥器使用独有的Nafion选择性渗透膜管连续干燥气流，仅去除水蒸气。这些干燥器可在很宽的温度，压力和流速范围内运行，干燥至露点可低至-60°C。
Perma Pure MD Series gas sample dryers use exclusive Nafion selectively permeable membrane tubing to continuously dry gas streams removing only water vapor. These dryers operate over a wide range of temperatures, pressures and flow rates, and dry to dew points as low as -60°C.
特点
流量高达4 l / m
工作温度最高 120°C
工作压力为100 psi（绝对压力）
直线或盘绕配置
耐腐蚀
标准露点至-25°C，特殊情况下可达-60°C（联系工厂）
不会损失分析物
Flow rates up to 4 l/m
Operating temperatures to max. 120° C
Operating pressures to 100 psi (absolute)
Straight or coiled configuration
Corrosion resistant
Standard dew points to – 25° C, with – 60° C possible in special cases (contact factory)
No loss of analytes
工作原理
MD系列气体干燥器将水分从一股气流转移到逆流吹扫气流，就像管壳式换热器传递热量一样。水分子透过Nafio管壁，蒸发到吹扫气流中。两种气流之间的水浓度差异驱动反应，快速干燥空气或气体。吹扫气体应干燥（-40°C露点）空气或其他气体。如果没有干燥气体，由MD系列干燥器干燥的一部分气体可以分流或回流方式充当吹扫气体。
MD-Series gas dryers transfer moisture from one gas stream to a counter-flowing purge gas stream, much like a shell-and-tube heat exchanger transfers heat. Water molecules permeate through the Nafion tube wall, evaporating into the purge gas stream. The water concentration differential between the two gas streams drives the reaction, quickly drying the air or gas. Purge gas should be dry (-40°C dew point) air or other gas. If no dry gas is available, a portion of the gas dried by the MD-Series dryer can act as the purge gas in a split-stream or reflux method.
PERMA-PURE干燥管MD系列其他常见型号：
PERMA-PURE MD-110-48P-1
PERMA-PURE MD-110-48P-2
PERMA-PURE MD-110-48P-4
PERMA-PURE MD-110-48F-1
PERMA-PURE MD-110-48F-2
PERMA-PURE MD-110-48F-4
PERMA-PURE MD-110-48FP-1
PERMA-PURE MD-110-48FP-2
PERMA-PURE MD-110-48FP-4
PERMA-PURE Temperature sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于PERMA-PURE干燥管MD-110-48P-4的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for PERMA-PURE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
