HYPERTAC连接器REP系列技术参数
Contact Arrangements | 2, 6, 12 |
Contact Diameter | Size 16: Ø 1.50 mm (0.059 in) |
Weight (contacts included) | REP606 with contacts: 19.3g |
Coding Configurations Polarisation | Cable-to-cable, clip locking, panel mount 180° |
Materials & Plating | |
Contacts | Gold over nickel plating |
Insulator | Polycarbonate |
Seal & Grommet | Overmoulded silicone |
Mechanical & Environmental | |
Contact Retention Force | > 70 N |
Contact Retention Force PCB version | > 20 N |
Clip Locking Retention Force | >110 N |
Mating Cycles | > 500 cycles |
Temperature Range | -75 °C to +100 °C (for crimp versions) |
Vibration | Category 2 (bogie installation) |
Flammability | I2 F1 |
Salt Spray | > 96 hours |
Fluid Resistance | Cleaning substances, gasoline/oil, acids, |
IP Level | IP66, IP67 |
Electrical | |
Current Rating | 18 A |
Voltage Rating | 230 V (400 V with plastic dummy contacts) |
Dielectric Withstanding Voltage | 2725 V |
Contact Resistance | ≤ 2.5 mΩ |
Insulation Resistance | ≥ 5x103 MΩ |
HYPERTAC连接器REP系列介绍
REP 系列易于使用，可快速插接。REP 面板和电缆连接器是一种更具成本效益的互连系统，可满足铁路应用中对简单可靠的连接器解决方案的持续需求。提供电线连接或 PCB 安装选项的全塑料解决方案，可提供快速组装安装，无需额外的安装硬件。需要时，电缆插座连接器可与电缆插头连接器配合，以实现电缆到电缆的解决方案。该系列符合法国和欧洲铁路标准。这些连接器可作为一个包覆成型的塑料部件，以节省组装时间。
REP series is easy to use for quick mating. The REP panel and cable connectors are a highly cost-effective interconnect system, which solves the constant need for simple and reliable connector solutions in rail applications. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable receptacle connectors are available to mate with the cable plug connectors for cable-to- cable solutions when needed. The series is qualified to French and European rail standards. The connectors are available as one overmolded plastic part to save assembly time.

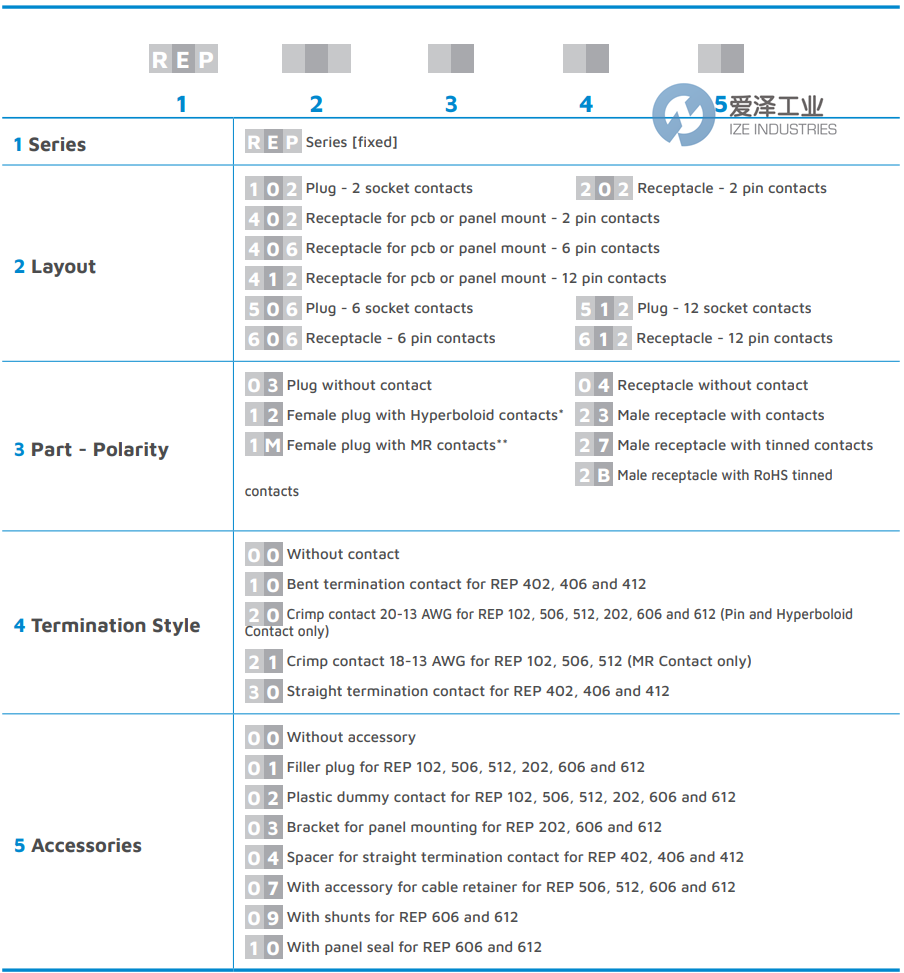

HYPERTAC连接器REP系列选型
HYPERTAC连接器REP系列其他常用型号：
HYPERTAC REP102030000
HYPERTAC REP202040000
HYPERTAC REP206040000
HYPERTAC REP606040000
HYPERTAC REP102122000
HYPERTAC REP202232000
HYPERTAC REP206232000
HYPERTAC REP206232001
HYPERTAC REP206230320
HYPERTAC REP206230320V2
HYPERTAC REP206230320V1
