MTM POWER主切换器PMA/PCMA30系列技术参数
Technical Data General | ||
Isolation Test Voltage | IEC 60 950-1 / UL 60 950-1 (factory test) | 3,3 kVAC |
Isolation Test Voltage (U1 /U2/3) | triple output | 500 VAC |
Isolation Resistance | > 1 GW | |
Output Voltage Separation | IEC 60 950-1 / EN 61 010-1 | double or reinforced isolation |
Overvoltage Category | OV2 | |
Pollution Leve | PD2 | |
Altitude | 2.000 m max. | |
Leakage Current (prim./sec.) | Uin = 230 VAC | 80 µA typ. |
Protection Class | suitable for the use in devices with Protection Class 1 or 2 | |
Protection Degree | EN 60 529 PMA / PCMA | IP00 / IP20 2) |
Ambient Temperature | -25...+65 °C | |
Temperature Coefficient | TA = -25...+65 °C | 0,01 % Uout / K |
Derating single / dual / triple | TA > 50 °C | 2 / 3 / 5 % Uout / K max. |
Cooling | free convection | |
Humidity | non-condensing | 95 % RH max. |
Storage Temperature | -45...+85 °C | |
Case Material / Potting Material | UL94V-0 | |
Dimensions L x W x H | PMA | 90,5 x 65,5 x 33,5 mm |
Weight | PMA / PCMA | 340 g / 380 g |
Diameter of Terminal Clamps | PCMA | 2,5 mm2 max. |
MTM POWER主切换器PMA/PCMA30系列介绍
特征
• 适用于全球应用的宽输入范围
• UL和cUL认证
• 为1级或2级做好准备
• CE 符合性
应用
• 工业应用的分散式电源
• 可用于PCB 安装 (PMA) 和机箱安装 (PCMA)
• 用于提供过程测量和控制技术、实验室设备以及系统和信息技术中的电子和电气电路
Features
• Wide Input Range for Worldwide Application
• UL and cUL Approved
• Prepared for Class 1 or 2
• CE Conformity
Applications
• Decentralised Power Supply for Industrial Applications
• Available for PCB-mounting (PMA) and for chassis mounting (PCMA)
•For supplying of electronic and electrical circuits in process measuring and control technology, laboratory equipment, as well as systems and information technology

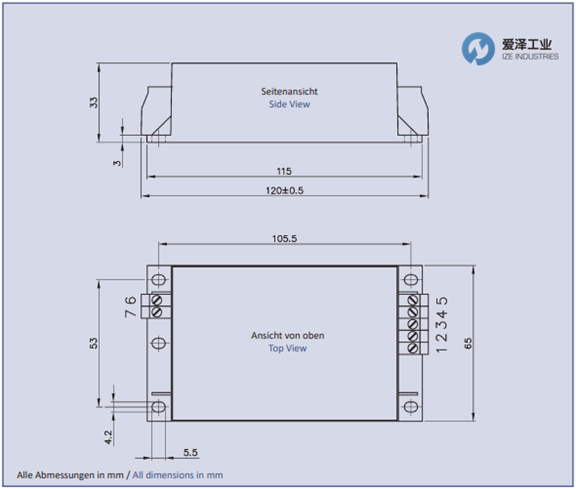

MTM POWER主切换器PCMA30技术尺寸
MTM POWER主切换器PCMA30系列其他常用型号：
MTM POWER PCMA30S05
MTM POWER PCMA30S12
MTM POWER PCMA30S15
MTM POWER PCMA30S24
MTM POWER PCMA30S48
MTM POWER PCMA30D12
MTM POWER PCMA30D15
MTM POWER PCMA30D512
MTM POWER PCMA30D515
MTM POWER PCMA30D524
MTM POWER PCMA30T512
MTM POWER PCMA30T515.
