CERMATE触摸屏PK2070-31ST技术参数
Model Name | PK2070-31ST | |
LCD Display | Size | 7.0" diagonal |
Max. Resolution | 800*480 | |
Type | TFT LCD with LED Backlight | |
Max. Colors | 16-bit | |
Backlight Life (hr) | 20000 | |
Luminance (cd/m2) | 400 | |
Touch Panel | 4-wire Analog Touch Panel | |
CPU | RISC ARM9 32Bit | |
Battery Backup SRAM | 128KB (Optional: 1024KB) | |
Working Memory | 64MB | |
Application Memory | About 40MB | |
Data File Memory | 64MB | |
Real-Time Clock (RTC) | Yes (Unchargeable Battery Type, 3 years battery life) | |
Max. Programming Pages | 7999 Pages | |
Max. Macro Commands | Unlimited | |
Communication Interface | Micro SD Slot | N/A |
USB Host | Yes (USB2.0) | |
USB Client | Yes (USB2.0) | |
Serial (Com1) | RS232 (DB9) | |
Serial (Com2) | RS422/485 (DB9) | |
Serial (Com3) | RS485 (DB9) | |
Serial (Com4) | Optional : RS485 (5-Pin Terminal) | |
Serial (Com5) | Optional : RS485 (5-Pin Terminal) or RS232 (5-Pin Terminal) | |
Ethernet | Yes | |
Front Function Keys | F1~F6(Optional) | |
Audio out (optional) | N/A | |
Video in (optional) | N/A | |
Front USB Host Port | N/A(Optional) | |
Power | Supply Voltage | 24VDC±10% (Isolated) |
Consumption | 20W | |
Environment | Operating Temperature | -10°C~60°C / (Optional for Front Aluminum Case+BR2450A/HAN battery:-20°C~70°C) |
Relative Humidity | 10%~90% | |
Shock (operation) | Half sine, 20G, 11ms duration | |
Vibration (operation) | Random vibration 1 Grms (5~500 Hz) | |
FCC | Yes | |
CE | EN61000-6-2, EN61000-6-4 | |
UL Certification | N/A | |
Ingress Protection | IP65 | |
Cooling | Natural Cooling | |
Dimension WxHxD (mm)* | 203.5 x 148.5 x37 | |
Cutout Dimension AxB (mm) | 191.5 x138 | |
Net Weight (Kg) | 0.55 | |
CERMATE触摸屏PK2070-31ST产品介绍
PK2070-31ST_7"（以太网）
[RTOS] 7" (800×480) TFT-LCD 操作面板，带 PM Designer 软件
» 7" TFT LCD，背光寿命长达 20,000 小时
»支持超过 500 种 PLC 工业通信协议
»基于 ARM9 的处理器高达 300MHz 和工作内存 64MB SDRAM
»备份内存 128KB SRAM 用于保留关键数据（可选：1024KB）
»支持 Windows 7/10 上的 PM Designer 开发工具
»PM Designer 支持通过串行、以太网、USB 端口下载数据
»支持通过触控面板调节亮度控制
»可靠PM Designer 的看门狗功能设置，用于 24/7 操作
»在几秒钟内轻松将一个应用程序切换到不同的 LCD 尺寸
»与多达六种类型的设备通信
»用于机械的面板安装
»符合 IP65 标准的前面板
PK2070-31ST_7" (ETHERNET)
[RTOS] 7" (800×480) TFT-LCD Operator Panel with PM Designer Software
» 7" TFT LCD with 20,000 hours backlight life time
»Supports over 500 PLC industrial communication protocols
»ARM9-based processor up to 300MHz and working memory 64MB SDRAM
»Backup memory 128KB SRAM for retaining critical data (optional:1024KB)
»Supports PM Designer development tool on Windows 7/10
»PM Designer supports data downloads through Serial, Ethernet, USB port
»Supports adjustable brightness controls via touch touch panel
»Reliable watch dog function setting from PM Designer for 24/7 operation
»Easy to switch one application to different LCD sizes in seconds
»Communicates with up to six types of devices
»Panel mounting for machinery
»IP65 compliant front panel

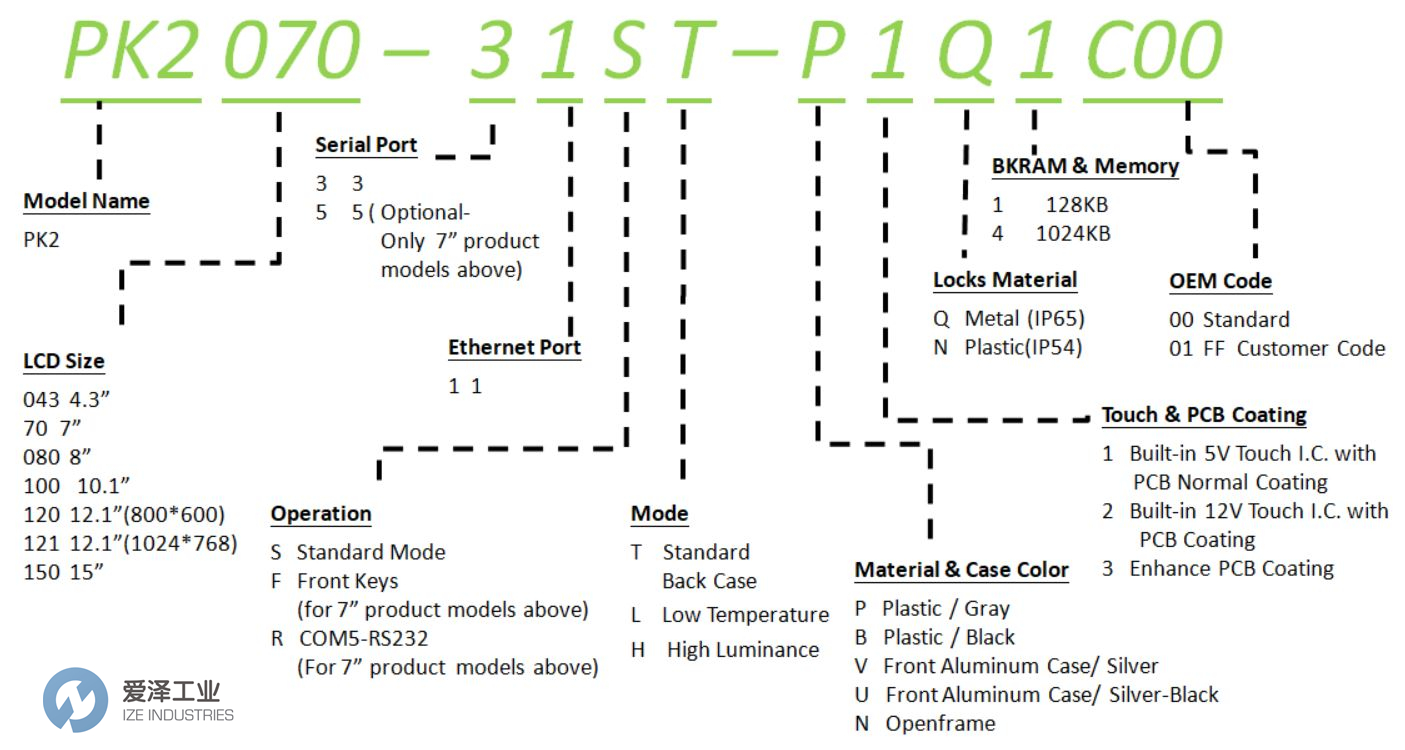

CERMATE触摸屏PK2 Ethernet Models系列选型
CERMATE触摸屏PK2 Ethernet Models系列其他常用型号：
CERMATE PK2043-31ST
CERMATE PK2070-31ST
CERMATE PK2080-31ST
CERMATE PK2100-31ST
CERMATE PK2104-31ST
CERMATE PK2121-31ST
CERMATE PK2150-31ST
