Bi-mec变压器T1F系列技术参数
PRODUCT FEATURES | |
Input voltage: | 230-400 V |
Output voltage: | 0-12 / 0-12 V or 0-55 / 0-55 |
Degree of protection: | IP20 |
Dielectric strength: | 3kV/50Hz for 60” |
Insulation class: | F |
Thermal class: | F |
Inrush current: | 20-26 times the primary rated current for about 10ms |
Short-circuit resistance: | not proof |
Protection class: | I |
Frequency: | 50-60Hz |

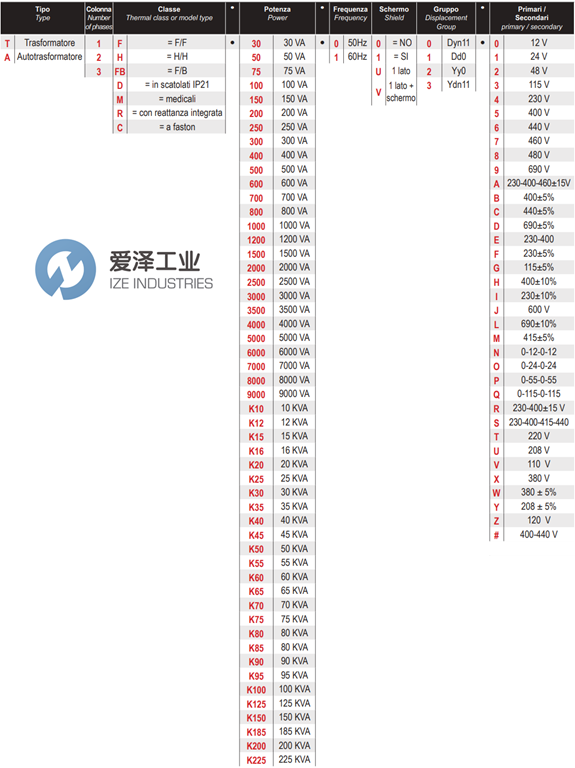

Bi-mec变压器T1F系列选型
Bi-mec变压器T1F系列其他常用型号：
Bi-mec T1F.30.000.EP
Bi-mec T1F.50.000.EP
Bi-mec T1F.75.000.EP
Bi-mec T1F.100.000.EP
Bi-mec T1F.150.000.EP
Bi-mec T1F.200.000.EP
Bi-mec T1F.250.000.EP
Bi-mec T1F.300.000.EP
Bi-mec T1F.400.000.EP
Bi-mec T1F.500.000.EP
Bi-mec T1F.600.000.EP
Bi-mec T1F.700.000.EP
Bi-mec T1F.800.000.EP
Bi-mec T1F.120.000.EP
Bi-mec T1F.1500.000.EP
Bi-mec T1F.1000.010.BV
Bi-mec transformers NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于Bi-mec变压器T1F.1000.010.BV的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for Bi-mec products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
Bi-mec变压器T1F系列T1F.1000.010.BV技术参数及选型
