CERMATE触摸屏PT2100-51ST_10.1”技术参数
Model Name | PT2100-51ST | |
LCD Display | Size | 10.1" diagonal |
Max. Resolution | 1024*600 | |
Type | TFT LCD with LED Backlight | |
Max. Colors | 16-bit | |
Backlight Life (hr) | 20,000 | |
Luminance (cd/m2) | 350 | |
Touch Panel | 4-wire Analog Touch Panel | |
CPU | RISC ARM9 32Bit | |
Battery Backup SRAM | 128KB (Optional: 1024KB) | |
Working Memory | 64MB | |
Application Memory | About 40MB | |
Data File Memory | 64MB | |
Real-Time Clock (RTC) | Yes (Unchargeable Battery Type, 5 years battery life) | |
Max. Programming Pages | 7999 Pages | |
Max. Macro Commands | Unlimited | |
Communication Interface | Micro SD Slot | N/A |
USB Host | Yes (USB2.0) | |
USB Client | Yes (USB2.0) | |
Serial (Com1) | RS232 (DB9) | |
Serial (Com2) | RS422/485 (DB9) | |
Serial (Com3) | RS485 (DB9) | |
Serial (Com4) | RS485 (5-Pin Terminal) | |
Serial (Com5) | RS485 (5-Pin Terminal) / Optional : RS232 (5-Pin Terminal) | |
Ethernet | Yes | |
Front Function Keys | F1~F7(Optional) | |
Audio out (optional) | N/A | |
Video in (optional) | N/A | |
Front USB Host Port | N/A(Optional) | |
Power | Supply Voltage | 24VDC±10% (Isolated) |
Consumption | 20W | |
Environment | Operating Temperature | -10°C~60°C / (Optional for Front Aluminum Case+BR2450A battery:-20°C~70°C) |
Relative Humidity | 10%~90% | |
Shock (operation) | Half sine, 20G, 11ms duration | |
Vibration (operation) | Random vibration 1 Grms (5~500 Hz) | |
FCC | Yes | |
CE | EN61000-6-2, EN61000-6-4 | |
UL Certification | UL61010 | |
Ingress Protection | NEMA Type 4X / IP66 | |
Cooling | Natural Cooling | |
Dimension WxHxD (mm)* | 270.1 x 212.1 x 43.48 (Includes 5-Pin terminal block height) | |
Cutout Dimension AxB (mm) | 259 x201 | |
Net Weight (Kg) | 1.1 | |
CERMATE触摸屏PT2100-51ST_10.1”产品介绍
[RTOS]10.1" (1024×600) TFT-LCD 操作面板，带 PM Designer 软件
10.1" TFT LCD，背光寿命为 20,000 小时
支持超过 500 个 PLC 工业通信协议
基于 ARM9 的处理器，高达 300MHz，工作内存 64MB SDRAM
备份内存 128KB SRAM，用于保留关键数据（可选：1024KB）
支持 Windows 7/10 上的 PM Designer 开发工具
PM Designer 支持通过串行、以太网、USB 端口下载数据
支持通过触摸屏调节亮度控制
可靠PM Designer 的看门狗功能设置，实现 24/7 全天候运行
在几秒钟内轻松将一个应用程序切换到不同的 LCD 尺寸
与多达六种类型的设备通信
用于机械的面板安装
符合 NEMA 4X 型 / IP66 标准的前面板
[RTOS]10.1" (1024×600) TFT-LCD Operator Panel with PM Designer Software
10.1" TFT LCD with 20,000 hours backlight life time
Supports over 500 PLC industrial communication protocols
ARM9-based processor up to 300MHz and working memory 64MB SDRAM
Backup memory 128KB SRAM for retaining critical data (optional:1024KB)
Supports PM Designer development tool on Windows 7/10
PM Designer supports data downloads through Serial, Ethernet, USB port
Supports adjustable brightness controls via touch touch panel
Reliable watch dog function setting from PM Designer for 24/7 operation
Easy to switch one application to different LCD sizes in seconds
Communicates with up to six types of devices
Panel mounting for machinery
NEMA Type 4X / IP66 compliant front panel

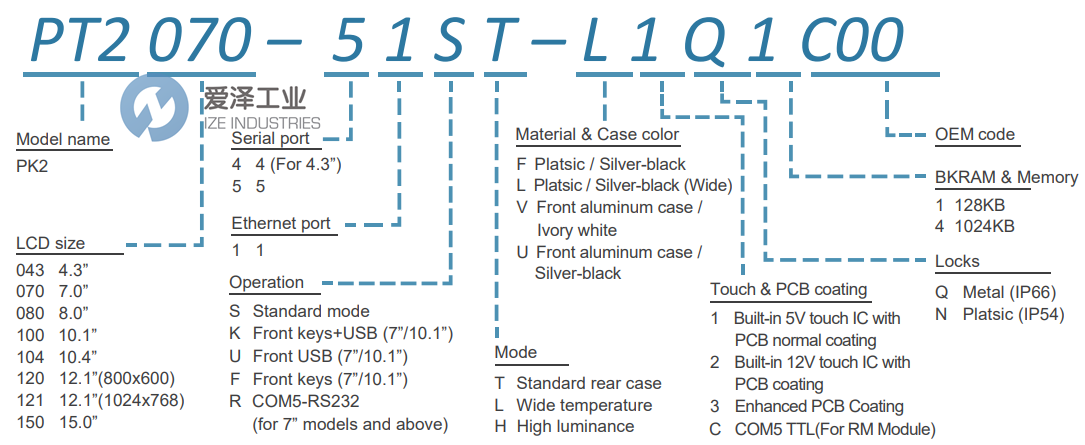

CERMATE触摸屏PT2系列选型
CERMATE触摸屏PT2系列其他常用型号：
CERMATE PT2100-51ST
CERMATE PT2104-51ST
CERMATE PT2121-51ST
CERMATE PT2150-51ST
CERMATE PT2043-41ST
CERMATE PT2070-51ST
CERMATE PT2080-51ST
CERMATE PT2100-51ST_10.1”
