HONEYWELL开关BZ系列技术参数
Specifications | |
Ampere rating | 15 A |
Circuitry | SPDT, SPNC, SPNO |
Operating force | 1.0 oz to 28 oz |
Termination | quick connect, solder, screw |
Actuator | pin plunger, overtravel plunger, straight, roller, flexible leaf roller, flexible leaf |
Voltage | 125 Vac, 250 Vac, 125 Vdc, 250 Vdc |
Agency approvals | UL, CSA, ENEC, CE (varies by specific model) |
Operating temperature | -55 °C to 85 °C [-67 °F to 185 °F] |
Contacts | silver, silver cadmium oxide, gold alloy |
Housing | general purpose phenolic |
Sealing | Environment sealing option available (options for IP64 Sealing) |
Dielectric strength | 2000 V between each terminal and ground |
Contact resistance | 15 m Ohm max.(initial) |
Insulation resistance | 100,000 M Ohm min. |
Vibration | 1,5 mm peak-to-peak amplitude, frequency 10 Hz to 55 Hz, for two continuous hours |
Expected mechanical life | up to 20,000,000 cycles at 95% survival |
Expected electrical service life | 100K operations at rated load |
Rated frequency | 50 Hz/60 Hz |
HONEYWELL开关BZ系列介绍
MICRO SWITCH™ BZ/BA/BM/BE系列开关精准可靠、性能稳定，具有精确的操作特性和更长的使用寿命。这些优质的大型快动开关提供精确的操作和灵敏的差动行程。
HONEYWELL采用优质的制造工艺和质量控制，精心打造了符合各种国际机构标准的优质大型快动开关。MICRO SWITCH™ BZ/BA/BM/BE系列开关常用于精密开关应用，以及限位、存在/不存在检测和手动操作界面功能。
其精心设计的结构适用于各种应用需求。BZ、BA、BM和BE开关的配置选项提供了多种操作和接口特性。
MICRO SWITCH™ 6AS系列由两个大型优质BZ/BA/BM/BE快动开关组合而成，并由单个执行器驱动。其中一个或两个开关均可选择现场可调操作点。
Accurate, reliable, and repeatable, MICRO SWITCH™ BZ/BA/BM/BE Series features precise operating characteristics and enhanced life. These premium, large snap-action switches offer precision operation and sensitive differential travel.
Utilizing state-of-the-art manufacturing processes and quality controls, Honeywell has engineered premium, large snap-action switches that meet various international agency requirements. Some models have military qualifications.MICRO SWITCH™ BZ/BA/BM/BE Series are often used for precision on/off applications, as well as end of limit,presence/absence, and manual operator interface functions.
Their engineered design is suitable for various application needs. Configured options with BZ, BA, BM, and BE switches provide a wide variety of operating and interface characteristics.
The MICRO SWITCH™ 6AS Series consists of two large premium BZ/BA/BM/BE snap-action switches ganged together and actuated by a single actuator. Field adjustable operating point is an option for one or both switches.

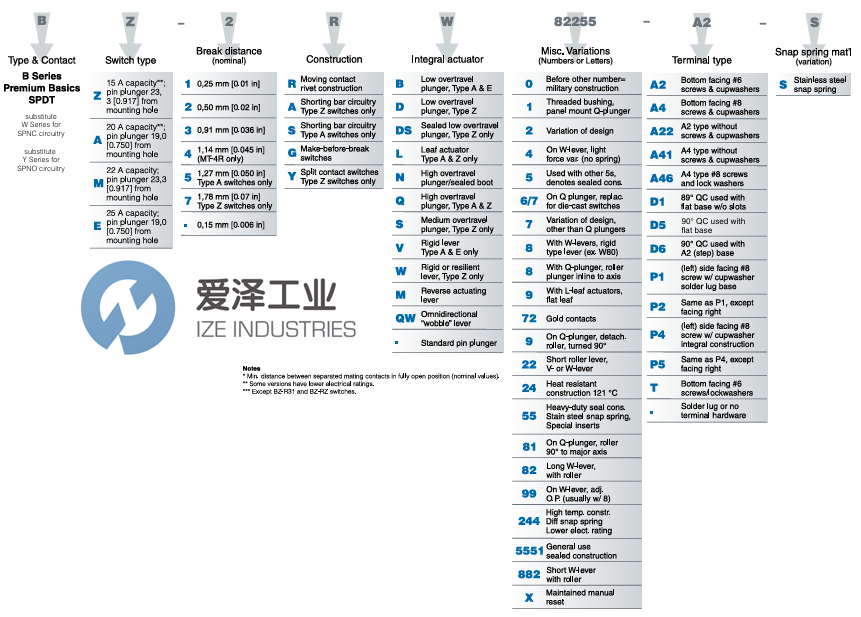

HONEYWELL开关BZ系列选型
HONEYWELL开关BZ系列其他常用型号：
HONEYWELL BZ-3YWT822
HONEYWELL BZ-2RD72-A2
HONEYWELL BZ-2RD-A2
HONEYWELL BZ-2RD24-A2
HONEYWELL BZ-2RDS725551-A2
HONEYWELL BZ-2RDS5551-A2
HONEYWELL BZ-2RS72-A2
HONEYWELL BZ-RSX
HONEYWELL BZ-2RS7225551-A2
HONEYWELL BZ-2RS5551-A2
