ROTECH限位开关PF3NVFAZ0技术规格
TECHNICAL DATA | |
Type: | SC3,5-N0, slot type NAMUR,Normally closed contact |
Depth of immersion: | 5 ... 7 mm |
Nominal voltage: | 8 V DC |
Operating current: | 5 ... 25 V DC |
Current consumpt.: | >= 3 mA, inactive |
Temperature: | -25 ... +85°C |
Switch. frequency: | 0 ... 3000 Hz |
Signal: | LED, yellow |
Housing: | Vestamid, black Cover with vision panel |
Sealing: | EPDM |
Ingress protection: | IP67 (Sensor) |
Switching precision: | <1.5° |
System connection: | Cable gland M20x1,5 |
Clamps: | Screw clamps up to 1,5 mm² |
ROTECH限位开关PF3NVFAZ0介绍
ROTECH限位开关其他常用型号:
ROTECH PF3NVFAZ0
ROTECH PF818MVAZ
ROTECH PF3NVFAZ0
ROTECH PF211SVFAZ
ROTECH PF3NVAZ0
ROTECH PFF25NVFAZ0
ROTECH Limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ROTECH限位开关PF3NVFAZ0的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for ROTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

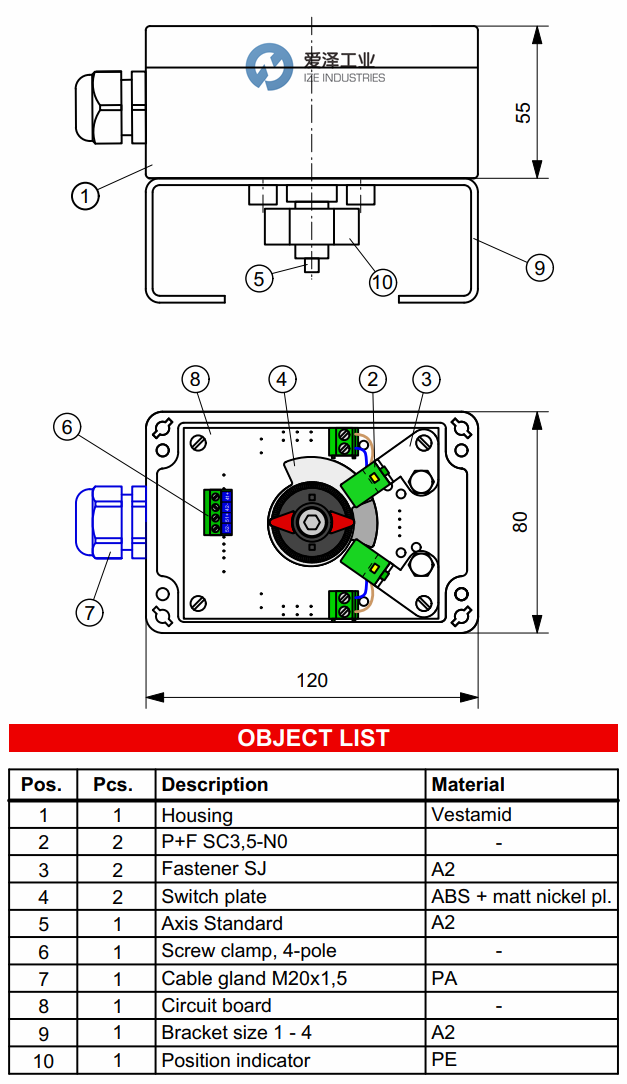

ROTECH限位开关PF3NVFAZ0技术参数
