HONEYWELL限位开关HDLS系列技术参数
Characteristic | Parameter |
Product type | MICRO SWITCH heavy-duty limit switches |
Certifications | UL, CE, CSA, CCC |
Reference standards | UL508, CSA 22.2 #14, EN/IEC60947-5-1, GB 14048.5 |
Housing material | Electrostatic epoxy coated zinc |
Housing type | HDLS Plug-in, HDLS Non-Plug-in |
Contact type | Snap action double break (form Za) same polarity each pole |
Contact material | Silver alloy (standard), optional gold-plated (low energy applications) |
Utilization category | AC-15, A600; DC-13, R300 (electrical ratings on page 5) |
Rated operational voltage (Ue) | 600 Vac, 250 Vdc |
Rated operational current (Ie) | 1.2 A, 0.1 A |
Rated thermal current | 10 A, 2.5 A |
Rated insulation voltage | 600 V |
Rated impulse withstand volt age (Uimp) | 2500 V |
Short circuit protection device (SCPD) type and rating | Class J fuse, rated 10 A, 600 V |
Pollution degree | 3 |
Sealing | IP65/66/67; NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 |
Operating temperature | -12°C to 121°C [10°F to 250°F]; optional: -40°C to 121°C [-40°F to 250 ’F] |
Vibration | 10 g conforming to IEC 60068-2-6 |
Shock (actuator not fitted) | 50 g conforming to IEC 60068-2-27 |
UNSPSC code | 302119 |
UNSPSC commodity | 302119 Switches and controls and relays |
HONEYWELL限位开关HDLS系列介绍
HONEYWELL的微动开关重型限位开关的模块化结构允许各种执行器样式，操作头，和电路选择。插件版本大大减少了生产线与高驱动率的停机时间，因为更换开关是在几秒钟内完成。底座插座包含所有的电线和导管连接，而带有操作头的开关组件很容易组装到底座上，并由两个螺钉连接。
它们适用于许多要求苛刻的室内和/或室外环境的应用，在这些环境中，它们可能会受到来自设备、极端温度、灰尘、飞溅的水、冷却剂和/或软管导向的水的冲击或振动。
Honeywell’s MICRO SWITCH heavy-duty limit switches’ modular construction allows for a wide variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle contains all the wiring and conduit connection while the switching component with operating head easily assembles to the base and is attached with two screws.
They are ideal for many applications with demanding indoor and/or outdoor environments, where they may be subjected to shock or vibration from equipment, temperature extremes, dust, splashing water, coolant, and/or hose-directed water.

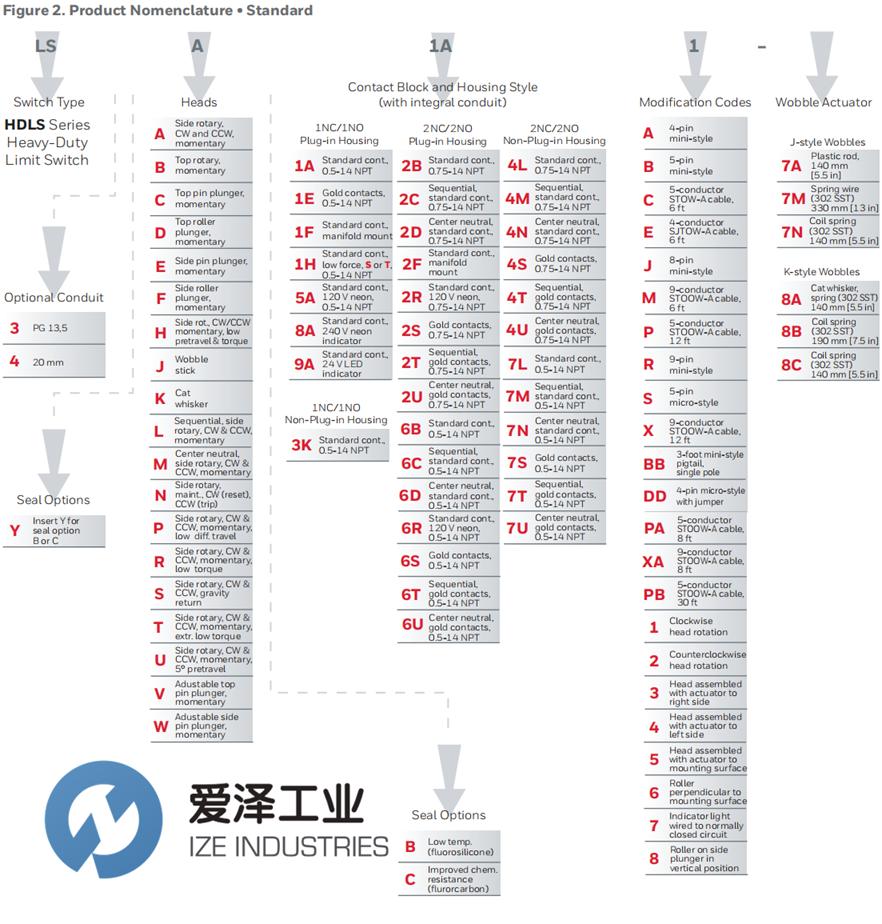

HONEYWELL限位开关HDLS系列选型
HONEYWELL限位开关HDLS系列其他常用型号：
HONEYWELL LSN1A
HONEYWELL LSN1E
HONEYWELL LSN5A
HONEYWELL LSN8A
HONEYWELL LSN3K
HONEYWELL LSN2B
HONEYWELL LSN6B
HONEYWELL LSN4L
HONEYWELL LSN7L
HONEYWELL LSP2B
HONEYWELL limit switches NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HONEYWELL限位开关LSP2B的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
HONEYWELL限位开关HDLS系列LSP2B技术参数及选型
