E-T-A电路保护模块ESX10-TD-101-DC24V-X279技术参数
Code | ESX10-TD-101-DC24V-X279 |
Type No. | [ESX10] Electronic Circuit Protector, with current limitation |
Mounting | [TD] Version: rail mounting, with auxiliary contact and slide actuation for 3-step current rating adjustment |
Version | [1] without physical isolation |
Signal input | [0] without signal input |
Signal output | [1] signal make contact |
Operating voltage | [DC 24 V] voltage rating DC 24 V |
Current ratings | [X279] 2/4/6 A adjustable (only ESX10-TD-...-X279) |
E-T-A电路保护模块ESX10-T系列介绍
ESX10-T系列延伸了DC24V应用领域电子过流保护器的产品线。
其提供了DC24V负载回路的选择性分断保护，宽度仅12.5mm。这是由发生短路和过载故障时的主动限流以及大于1.1倍过载电流时的分断来实现。ESX10-T具备唯一脱扣曲线，适用各种负载，如，容性负载达75,000 µF，直流马达，阀岛。集成的失效保护元件参照电流等级和连接电缆的截面积。
ESX10-T可嵌入式标准导轨，确保了多个回路的简易安装。
Type ESX10-T. expands our product range of electronic overcurrent protection for DC 24 V applications.
It provides selective protection of all DC 24 V load circuits at a width of only 12.5 mm. This is achieved by active current limitation in the event of a short circuit and overload disconnection from 1.1 times rated current. The ESX10-T features one single trip curve for all types of loads, e.g. capacitive loads up to 75,000 µF, d.c. motors, valve clusters. The integral fail-safe element has been adjusted to the current rating and the connected cable cross section.
The ESX10-T can be snapped onto symmetrical rails, ensuring ease of mounting in multiple circuits.

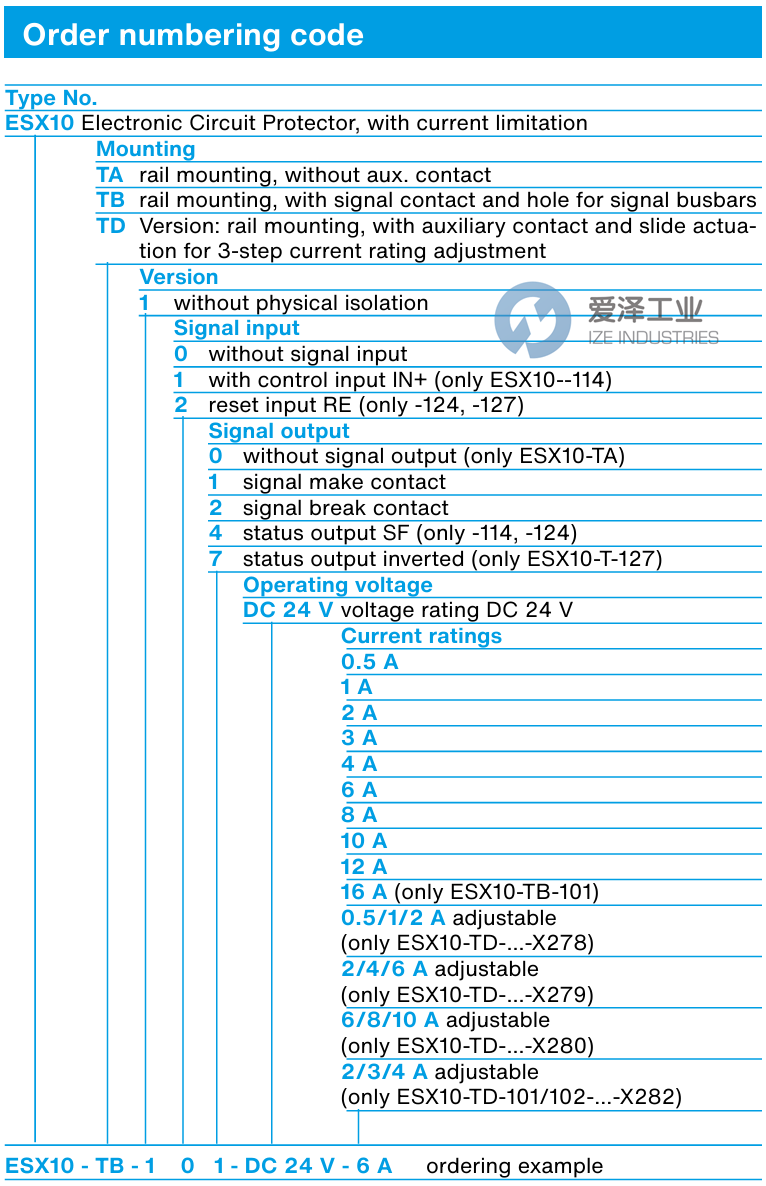

E-T-A电路保护模块ESX10-T系列选型
E-T-A电路保护模块ESX10-T系列其他常用型号：
E-T-A ESX10-TD-101-DC24V-X280
E-T-A ESX10-TB-124-DC24V-10A-E
E-T-A ESX10-TD-101-DC24V-X279
E-T-A ESX10-TD-101-DC24V-X278
