RARA电阻器IRV800系列技术参数
Weight | 1.50000 kg |
Dimensions | 59.00 x 61.00 x 285.00mm |
Product Type | Metal Clad, Wirewound, Resist |
Series / Model | IRV |
Power Rating | 360W, 800W |
Minimum Resistance | 0.1Ω |
Maximum Resistance | 112Ω |
Tolerance | ±1%, ±2%, ±5%, ±10% |
Temperature Coefficient | ±260 ppm/°C |
Insulation Resistance | 20MΩ minimum |
Inductive or Non Inductive | Inductive, Non Inductive |
Termination / Connection | Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection |
Temperature Range (°C) | -55 to +200°C (Cement) |
RARA电阻器IRV系列介绍
体验 IRV（立式）系列的工程精度，为从电机驱动到电动汽车充电等各种应用提供高性能金属包层线绕电阻器。这些电阻器的功率范围从 60W 到 500W，提供多种选择，感性电阻范围为 0.1Ω 至高达 6.8kΩ，非感性电阻范围为 0.1Ω 至 3kΩ。这些电阻器具有 ±0.5%、±1%、±2%、±5% 和 ±10% 的出色容差以及高达 ±260ppm/℃ 的电阻温度系数 (TCR)。铝制外壳可确保坚固的保护，适合苛刻的环境，使其成为电机驱动、制动和缓冲器、电动汽车充电和工业设备电源等应用的理想选择。IRV 系列还提供卧式型号 (IRH)，通过飞线或凸片端子等选项提供灵活性。如需获得 UL/CE 认证，请探索 ULH/ULV 系列。
Experience engineering precision with the IRV (Vertical) Series, delivering high-performance metal-clad wire-wound resistors for diverse applications, from motor drives to electric vehicle charging. Ranging from 60W to 500W, these resistors offer versatile options with an inductive resistance of 0.1Ω up to 6.8kΩ and non-inductive range of 0.1Ω up to 3kΩ. These resistors boast an exceptional Tolerances of ±0.5%, ±1%, ±2%, ±5%, and ±10% and a Temperature Coefficient of Resistance (TCR) of ±260ppm/℃ max. The aluminum housing ensures rugged protection, suitable for demanding environments making it ideal for applications such as motor drives, braking and snubber, EV charging and power sources for industrial equipment. The IRV Series, also available a horizontal model (IRH), provides flexibility with options like flying leads or tab terminals. For UL/CE approval, explore the ULH/ULV Series.

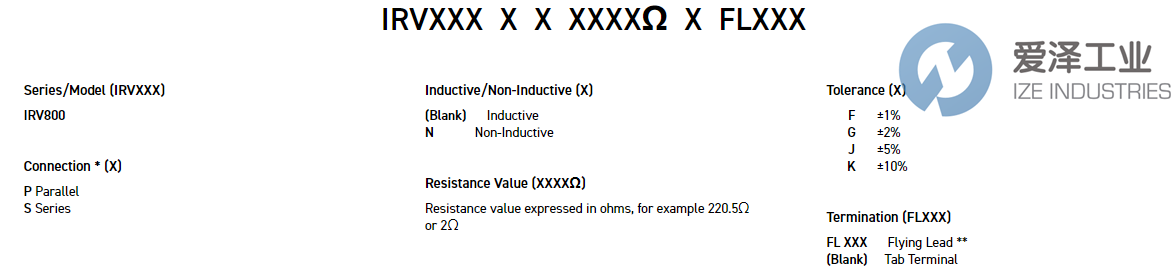

RARA电阻器IRV系列选型
RARA电阻器IRV系列其他常用型号：
RARA IRV800PN5ΩJ
RARA IRV800S-80- J19
RARA IRV60
RARA IRV80
RARA IRV100
RARA IRV120
RARA IRV150
RARA IRV200
RARA IRV300
RARA IRV400
RARA IRV500
RARA IRV600
RARA IRV800
RARA IRV1000
RARA IRV1200
RARA RESISTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于RARA电阻器IRV800S-80- J19的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for RARA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
RARA电阻器IRV系列IRV800S-80- J19技术参数及选型
