HONEYWELL限位开关GLC系列技术参数
Specifications | |
Housing material | Electrostatic epoxy coated zinc |
Actuators | Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator |
Termination | 0.5-14 NPT, PG 13,5, 20 mm, PF 1/2, Deutsch style 4-pin connector |
Contact options | 1NC/1NO, 2NC, 2NO |
Contact type | snap-action, slow-action break-before-make (BBM), slow-action make-before-break (MBB), slow action |
Contact material | silver (standard), gold plated (low-energy applications) |
Thermal current (Ith) | 10 A |
Rated insulation voltage | 300 V |
Rated impulse voltage | 2.5 kV |
Sealing | NEMA 1, 4, 12, 13; IP66 |
Operating temperature | -40 °C to 85 °C [-40 °F to 185 °F] |
Mechanical life | Up to 10 million cycles |
Pollution code | 3 |
Max. actuation frequency | 250 operations/minute; 100 operations/minute (wobbles) |
Shock | 50 g per IEC 60068-2-27 |
Vibration | 10 g per IEC 60068-2-6 |
Approvals | CE, UL, CSA and CCC |
Conforming to standards | CE, EN50047, IEC/EN 60947-5-1; CSA C22.2 #14; UL 508; CCC GB14048.5; EN45545-2 (GLC/GLE) |
HONEYWELL限位开关GLC系列介绍
MICRO SWITCH GLS微型限位开关系列提供丰富的全球解决方案产品。这些耐用可靠的限位开关适用于众多工业应用、农业设备、运输设备以及其他需要环境密封（IP 和 NEMA 等级）开关的应用。
紧凑的外壳设计使其成为空间受限设备的理想之选。该系列产品提供三种不同的外壳类型：金属外壳、塑料外壳或三导管金属外壳，均符合EN50047安装标准。丰富的执行器、触点模块和导管/连接选项进一步增强了产品功能。
在当今逻辑电平控制日益普及的时代，机电开关常用于与PLC和其他逻辑电平设备进行接口连接。GLS限位开关为标准开关提供镀金触点选项。该选项可提升开关在逻辑电平应用中的可靠性。
Honeywell MICRO SWITCH GLS miniature limit switch family offers a wide range of products for global solutions. These durable and reliable limit switches are suitable for many industrial applications, agriculture equipment, transportation equipment, and other applications requiring an environmentally sealed (IP and NEMA) switch.
The compact housings are often ideal for equipment where space is at a premium. The extensive product range is available in three different housing types; metal housing, plastic housing or a three conduit metal housing which are mounting compatible to EN50047. A wide range of actuators, contact blocks, and conduit/connectivity options enhance the product offering.
In today’s demanding age of logic-level controls,electromechanical switches are frequently used to interface with PLCs and other logic level devices. GLS limit switches offer an option for gold-plated contacts for the standard switch. This option promotes the switch reliability for logic-level applications.

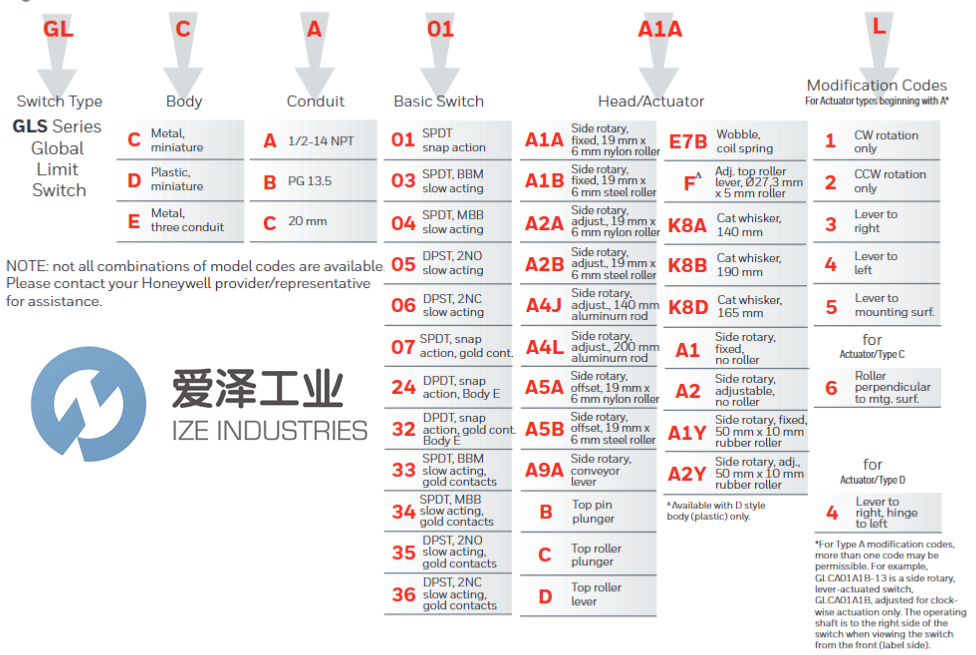

HONEYWELL限位开关GLC系列选型
HONEYWELL限位开关GLC系列其他常用型号：
HONEYWELL GLCC01A1B
HONEYWELL GLCA01A1A
HONEYWELL GLCB01A1A
HONEYWELL GLCC01A1A
HONEYWELL GLCC07A1A
HONEYWELL GLCA03A1A
HONEYWELL GLCA05A1A
HONEYWELL GLCA01A1B
HONEYWELL GLCB01A1B
HONEYWELL GLCC01A1B
HONEYWELL limit switches NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HONEYWELL限位开关GLCC01A1B的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
HONEYWELL限位开关GLC系列GLCC01A1B技术参数及介绍
