HYDAC测压软管S100-AC系列技术数据
| |||||||||
Nominal width | Design | Application | pn | pB | ID | AD | rmin | Operable temperature range | Pressure utilisation factor |
DN2 | Standard 400 | Perforated | 40,0 | 104,0 | 2 | 5 | 20 mm(below -20 °C 30 mm) | -20 °C up to +100 °C | 0 °C 122% 30 °C 110% |
DN2 | Standard 630 | 63,0 | 195,0 | 2 | 5 | ||||
DN2 | Low temperature | 63,0 | 150,0 | 2 | 5 | -54 °C up to +100 °C | |||
DN4 | Standard 315 | 31,5 | 81,0 | 4 | 8 | 40 mm (below -20 °C 60 mm) | -20 °C up to +100 °C | ||
DN4 | Standard 450 | 45,0 | 150,0 | 4 | 8 | ||||

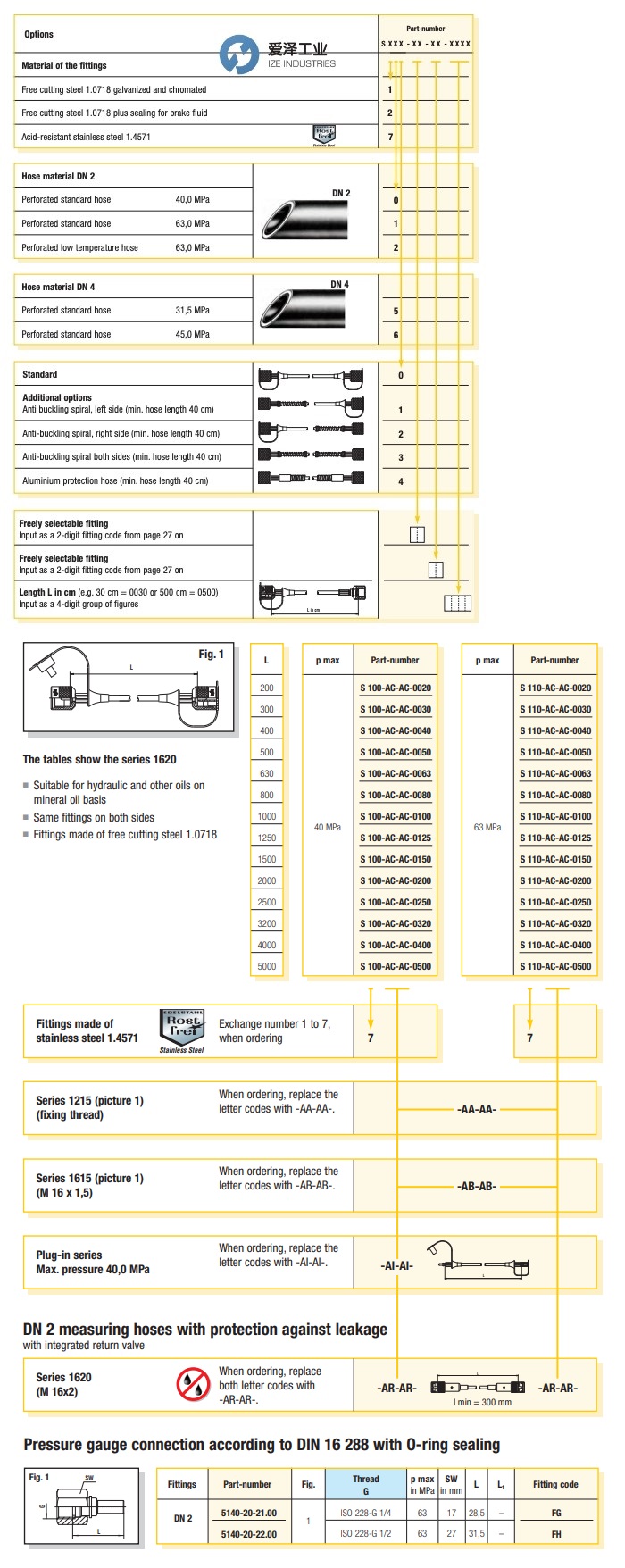

HYDAC测压软管S100-AC介绍及选型
HYDAC测压软管S100-AC系列其他型号列举：
HYDAC S100-AC-AC-0020
HYDAC S100-AC-AC-0030
HYDAC S100-AC-AC-0040
HYDAC S100-AC-AC-0050
HYDAC S100-AC-AC-0063
HYDAC S100-AC-AC-0080
HYDAC S100-AC-AC-0100
HYDAC S100-AC-AC-0125
HYDAC S100-AC-AC-0150
HYDAC S100-AC-AC-0200
HYDAC S100-AC-AC-0250
HYDAC S100-AC-AC-0320
HYDAC S100-AC-AC-0400
HYDAC S100-AC-AC-0500
HYDAC S110-AC-AC-0020
HYDAC S110-AC-AC-0030
HYDAC S110-AC-AC-0040
HYDAC S110-AC-AC-0050
HYDAC S110-AC-AC-0063
HYDAC S110-AC-AC-0080
HYDAC S110-AC-AC-0100
HYDAC S110-AC-AC-0125
HYDAC S110-AC-AC-0150
HYDAC S110-AC-AC-0200
HYDAC S110-AC-AC-0250
HYDAC S110-AC-AC-0320
HYDAC S110-AC-AC-0400
HYDAC S110-AC-AC-0500
HYDAC Pressure measuring hose NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYDAC测压软管S100-AC-FH-0250的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
HYDAC测压软管S100-AC系列规格描述
