SUBCONN水密连接器介绍

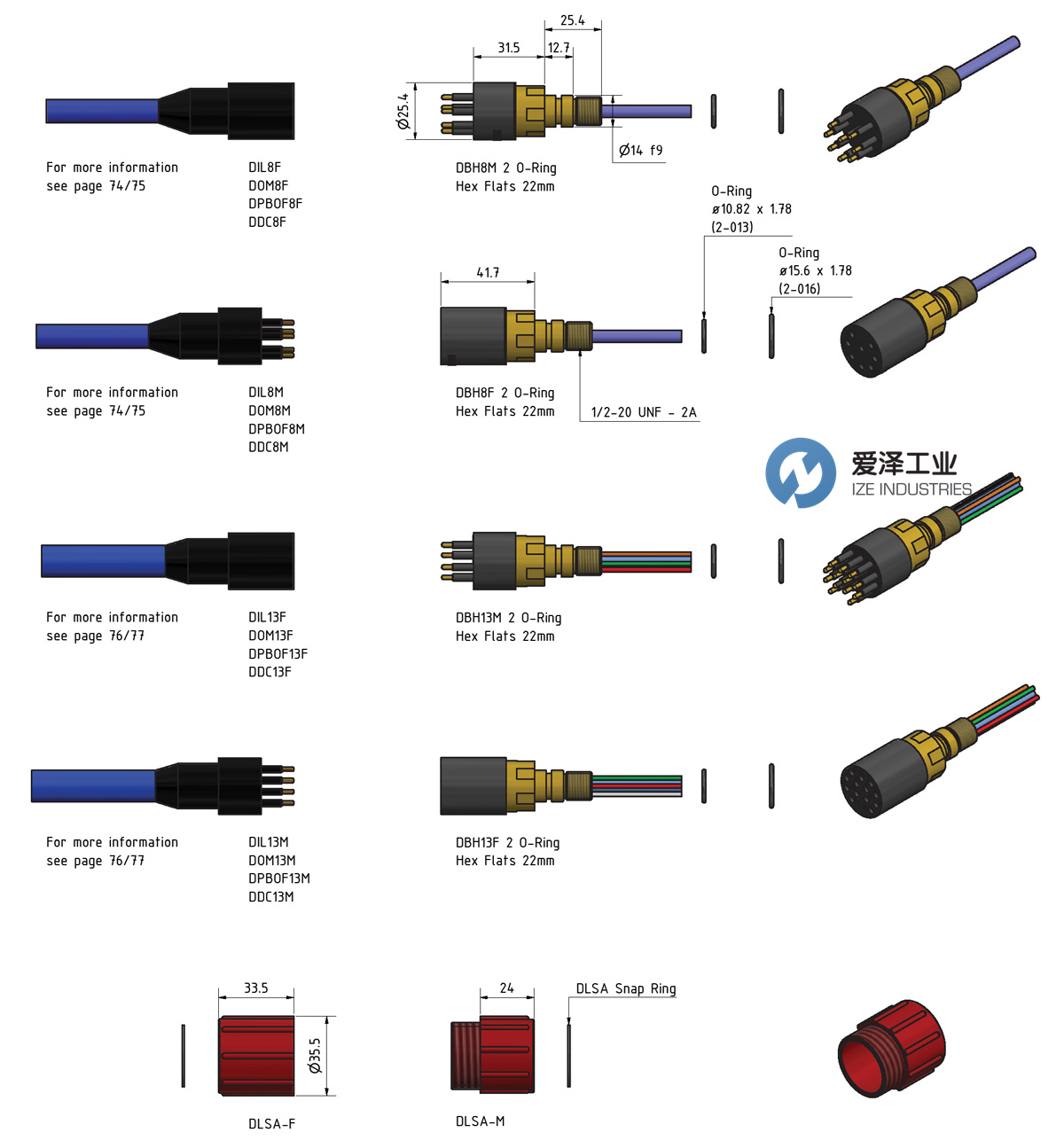

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
Voltage rating: 600 V DC/AC rms (13 contacts only)
Voltage rating on data wire: 250 V DC/AC rms
Current rating on power wire: 4 A per contact (max 16 A per connector) (13 contacts only)
Data rate: 1 Gbit/s
Insulation resistance: > 200 Mohm
Contact resistance: < 0.01 ohm
Wet matings: > 500 (open face rated)
Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
Qualified pressure tested: 600 bar, 8,700 psi
Material specifications
Connector body: Chloroprene rubber
Bulkhead body: Brass, stainless steel, titanium, anodised aluminium
Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
O-rings: Nitrile
Locking sleeves: POM or stainless steel
Snap rings: Stainless steel AISI 302
Bulkhead leads (3.3 ft, 100 cm): CAT 5E patch cable, 5 x 20 AWG, 0.52 mm2 coloured PTFE (13 contacts only), incl. RJ 45 connector (not installed)
以毫米为单位的尺寸(1 毫米 = 0.03937 英寸)
以英寸为单位的螺纹(1 英寸 = 25.4 毫米)
连接器规格
额定电压:600 V DC/AC rms(仅 13 个触点)
数据线上的额定电压:250 V DC/AC rms
电源线上的额定电流:每个触点 4 A(每个连接器最大 16 A)(仅限 13 个触点)
数据速率:1 Gbit/s
绝缘电阻:> 200 兆欧姆
接触电阻:< 0.01欧姆
湿交配:> 500(开面额定)
额定温度(水):- 4 至 60˚C,25 至 140˚F
额定温度(空气):- 40 至 60˚C,- 40 至 140˚F
储存温度额定值:- 40 至 60˚C,- 40 至 140˚F
合格的压力测试:600 bar,8,700 psi
材质规格
连接器主体:氯丁橡胶
隔板主体:黄铜、不锈钢、钛、阳极氧化铝
触点:镀金黄铜 UNS - C36000 母插座,镀金铍铜公针
O 型圈:丁腈橡胶
锁套:POM 或不锈钢
卡环:不锈钢 AISI 302
隔板引线(3.3 英尺,100 厘米):CAT 5E 跳线,5 x 20 AWG,0.52 mm2 彩色 PTFE(仅 13 个触点),包括。 RJ 45 连接器(未安装)
SUBCONN水密连接器其他常用型号:
SUBCONN DIL8M
SUBCONN DIL3M
SUBCONN DIL13M
SUBCONN Data reader base NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、于一体,代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SUBCONN连接器DIL8M的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for SUBCONN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
SUBCONN连接器Micro Circular系列DIL8M介绍
