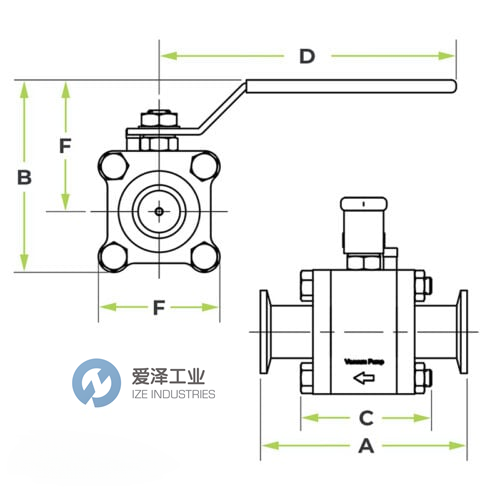

ANCORP球阀D4150-QF40技术参数

ANCORP球阀D4150-QF40产品介绍

ANCORP的球阀由耐腐蚀的316L不锈钢制成的阀体、阀杆、球体和两个端盖组成。氟弹性体用于密封阀杆和端盖以隔绝大气，PTFE密封座在关闭时紧紧围绕球体以隔离工艺。阀门可以手动或通过1/4转快速实行气动开启和关闭。PTFE密封面有助于防止沉积，保持清洁的动态密封以防止因污染导致的故障。

应用

ANCORP真空球阀的耐腐蚀、快速执行的设计使其非常适合用在真空工艺工具中的反应器、陷阱和洗涤器的隔离。

特点

真空等级为1×10^-8托

FKM标准最大温度范围为-26°C至150°C（-15°F至302°F）

采用其他o型圈和润滑脂选项可实现更高的操作温度。更多信息请联系销售部门。

由316L不锈钢制造

高传导；直通流

抗颗粒的球/密封设计延长了维护周期

可在不移除系统的情况下维修阀门

维修套件和配件

所有2通球阀系列都提供维修套件。套件包括：

(1) 阀杆o型圈

(2) 阀体o型圈

(2) PTFE密封座

(1) PTFE垫片

(1) PEEK阀杆轴承

ANCORP’s ball valves consist of a body, stem, ball, and two end caps machined from corrosive resistant 316L stainless steel. Fluoroelastomers are used to seal the stem and end caps from atmosphere while the PTFE seats cold flow around the ball to isolate the process when closed. The valve is opened and closed manually or pneumatically by ¼ turn, quick actuation. The PTFE sealing surface helps to protect it from deposition, maintaining a clean dynamic seal to prevent failure due to contamination.

Applications

The corrosive resistant, fast actuating design of ANCORP’s vacuum ball valves makes them ideal for isolating reactors, traps, and scrubbers on vacuum process tools.

Features

Vacuum rating of 1×10-8 torr

Max Temp w/Standard FKM -26°C to 150°C (-15°F to 302°F)

Higher operating temperatures are possible with alternate o-ring and grease options. Contact our sales department for more information.

Manufactured from 316L stainless steel

High conductance; straight through flow

Particulate resistant ball/seat design lengthens time between maintenance cycles

Service valve without removal from the system

Service Kits and Accessories

Service kits are available for all 2-way ball valve series. Kit includes:

(1) stem o-ring

(2) body o-rings

(2) PTFE seats

(1) PTFE spacer

(1) PEEK stem bearing

ANCORP球阀其他常用型号：

ANCORP B4075-QF16

ANCORP C4100-QF25

ANCORP D4150-QF40

ANCORP E4200-QF50

ANCORP F4200-QF50

ANCORP Pneumatic Ball Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
