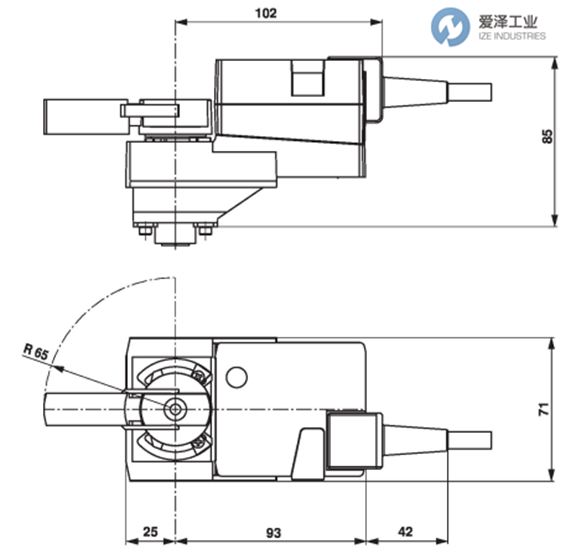

Nominal voltage

AC/DC 24 V

Nominal voltage   frequency

50/60 Hz

Nominal voltage range

AC 19.2...28.8 V / DC   19.2...28.8 V

Power consumption in operation

1.5 W

Power consumption in   rest position

0.4 W

Power consumption for   wire sizing

3 VA

Connection supply /   control

Cable 1 m, 4 x 0.75   mm²

Parallel operation

Yes (note the   performance data)

Functional data

Torque motor

5 Nm

Operating range Y

2...10 V

Input Impedance

100 kΩ

Position feedback U

2...10 V

Position feedback U   note

Max. 1 mA

Position accuracy

±5%

Manual override

with push-button, can   be locked

Running time motor

35 s / 90°

Sound power level,   motor

55 dB(A)

Position indication

Mechanically,   pluggable

Safety data

Protection class   IEC/EN

III, Safety Extra-Low   Voltage (SELV)

Power source UL

Class 2 Supply

Degree of protection   IEC/EN

IP54

Degree of protection   NEMA/UL

NEMA 2

Enclosure

UL Enclosure Type 2

EMC

CE according to   2014/30/EU

Certification IEC/EN

IEC/EN 60730-1 and   IEC/EN 60730-2-14

UL Approval

cULus according to   UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
  The UL marking on the actuator depends on the production site, the device is   UL-compliant in any case

Mode of operation

Type 1

Rated impulse voltage   supply / control

0.8 kV

Pollution degree

3

Ambient humidity

Max. 95% RH,   non-condensing

Ambient temperature

-30...50°C   [-22...122°F]

Storage temperature

-40...80°C   [-40...176°F]

Servicing

maintenance-free

Weight

Weight

0.44 kg
