Nominal voltage

AC 230 V

Nominal voltage   frequency

50/60 Hz

Nominal voltage range

AC 19...264 V

Power consumption in   operation

4.5 W

Power consumption in   rest position

2W

Power consumption for   wire sizing

9 VA

Power consumption for   wire sizing note

Imax4A @ 5 ms

Auxiliary switch

2 x SPDT

Switching capacity   auxiliary switch

1 m...3 A (0.5 A inductive),   DC 5 V..AC 250 V (II, reinforced insulation)

Switching points   auxiliary switch

5° / 80°

Connection supply /   control

Cable 1 m, 2 x 0.75   mm2 (halogen-free)

Connection auxiliary   switch

Cable 1 m, 6 x 0.75   mm2 (halogen-free)

Functional data

Torque motor

9 Nm

Torque fail-safe

7 Nm

Direction of motion   motor

selectable by mounting   L/R

Manual override

with position stop

Angle of rotation

Max.95°

Running time motor

<60s / 90°

Running time fail-safe

20s @-10.. .55°C/ <60s   @ -0...-10°C

Sound power level,   motor

55 dB(A)

Sound power level,   fail-safe

67 dB(A)

Mechanical interface

Form fit 12x12 mm,   continuous hollow shaft

Position indication

Mechanically, with   pointer

Service life

Min. 60'000 safety   positions

Safety data

Protection dlass   IEC/EN

II, reinforced   insulation

Protection class   auxiliary switch IEC/EN

II, reinforced   insulation

Degree of protection   IEC/EN

IP54

Degree of protection   note

IP protection in all   mounting positions

EMC

CE according to   2014/30/EU

Low voltage directive

CE according to   2014/35/EU

Certification IEC/EN

IEC/EN 60730-1 and   IEC/EN 60730-2-14

Mode of operation

Type 1.AA.B

Rated impulse voltage   supply / control

4 kV

Pollution degree

3

Ambient temperature   normal operation

-30.. .55°C

Ambient temperature   safety operation

The safety position   will be attained up to max.75°C

Storage temperature

-40...0°C

Ambient humidity

Max. 95% RH,   non-condensing

Servicing

maintenance-free

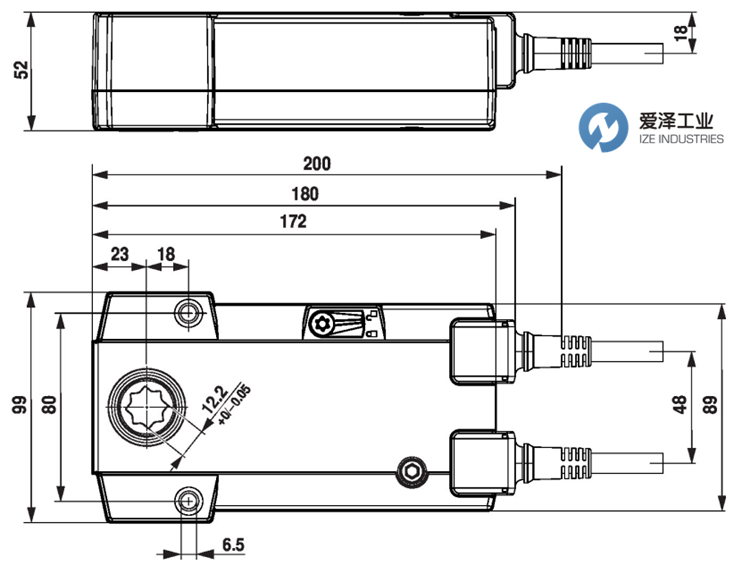

Weight

Weight

1.3 kg
