Electrical data

Nominal voltage

24 VAC/DC, 50/60 Hz

Nominal voltage range

19...29 VAC/DC

Power consumption   motor (motion)

18,0 W

Power consumption   standby (end position)

1,0 W

Wire sizing

22,0 VA

Control

continuous control   (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ resolution 40 mV (0)4...20 mA / Rext.   = 500 Ω resolution 0,08 mA

Feedback signal

(0)2...10 VDC, max. 5   mA

Connection motor

cable 1000 mm, 4 x   0,75 mm² (halogen free)

Functional data

Torque

15 Nm

Damper size

up to approx. 3 m²

Synchronized speed

±5%

Direction of rotation

selected by switch

Manual override

gearing latch   disengaged with pushbutton, self-resetting

Angle of rotation

0°...max. 95° can be   limited with adjustable mechanical end stops ; after changing the angle of   rotation, a adaptation drive must be made

Running time

3...5 s / 90°   (load-dependent)

Sound power level

< 55 dB(A)

Shaft coupling

clamp ◊ 8-15 mm / Ø   8-20 mm

Position indication

mechanical with   pointer

Service life

> 100 000 cycles   (0°...95°...0°)
  > 1 500 000 partial cycles (max. ±5°)

Safety

Protection class

III (safety extra-low   voltage)

Degree of protection

IP 54 (cable   downwards)

EMC

CE (2014/30/EU)

LVD

CE (2014/35/EU)

RoHS

CE (2011/65/EU-   2015/863/EU-2017/2102/EU)

Mode of operation

Typ 1 (EN 60730-1)

Rated impulse voltage

0,8 kV (EN 60730-1)

Control pollution   degree

3 (EN 60730-1)

Ambient temperature   normal operation

-30°C... +50°C

Storage temperature

-30°C... +80°C

Ambient humidity

5...95% r.H., non   condensing (EN 60730-1)

Maintenance

maintenance free

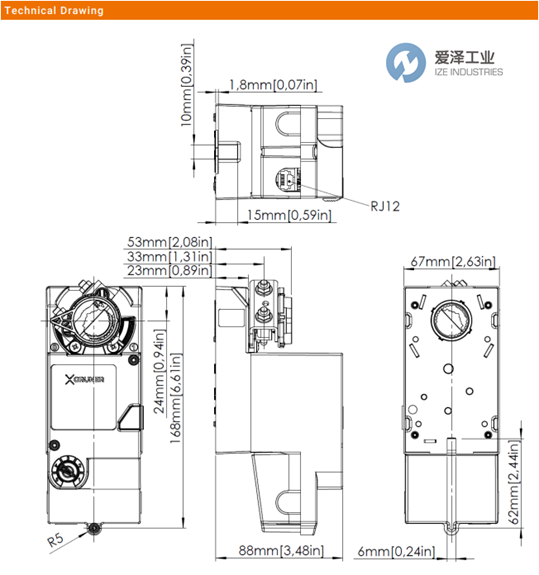

Dimensions / Weight

Dimensions

172 x 65 x 87 mm

Weight

700 g
