E+E温湿度传感器EE160系列技术参数
Technical Data | |
Measurands | |
Relative humidity | |
Accuracy1) at 20 °C | ±2.5 %RH |
Temperature dependency, typ. | ±0.03 %RH / °C |
Temperature Accuracy at 20 °C | ±0.3 °C (±0.54 °F) |
Outputs | |
Analogue | 0 - 10 V 0 < IL < 1 mA |
Digital interface | RS485 (EE160 = 1 unit load) |
Passive T sensor | 4-wire connection, see ordering guide |
General | |
Power supply |
|
Electrical connection | Screw terminals, max. 1.5 mm2 |
Enclosure | Polycarbonate, UL94 V-0 approved |
Protection rating | IP65 / NEMA 4X |
Cable gland | M16x1.5 |
Electromagnetic compatibility | EN 61326-1 |
Working range | -40...60 °C (-40...140 °F) / 10…95 %RH |
Storage conditions | -20...60 °C (-4...140 °F) / 10…90 %RH, non-condensing |
E+E温湿度传感器EE160系列介绍
EE160 针对楼宇自动化中的相对湿度 (RH) 和温度 (T) 进行经济高效、准确的测量进行了优化。
可靠的
即使在污染或侵蚀性环境中,也可通过探头内部的封装测量电子设备和传感元件的 E+E 专有保护来确保长期稳定性。
通用性
测量数据可通过两个电压或电流(2 线)输出,或通过 BACnet MS/TP 或 Modbus RTU 协议的 RS485 接口获得。此外,EE160 具有无源 T 输出。
功能设计
EE160 可用于墙壁或管道安装。 IP65 / NEMA 4X 外壳将安装成本降低,并提供出色的防污染和冷凝保护。
舒适的配置和调整
通过可选的配置适配器和免费的 EE-PCS 产品配置软件,用户可以设置 RS485 接口参数、输出缩放以及对 RH 和 T 进行一点或两点调整。
The EE160 is optimized for cost effective, accurate measurement of relative humidity (RH) and temperature (T) in building automation.
Reliable
Best long-term stability even in polluted or aggressive environment is ensured by the encapsulated measurement electronics inside the probe and E+E proprietary protection of the sensing element.
Versatile
The measured data is available on two voltage or current (2-wire) outputs, or on the RS485 interface with BACnet MS/TP or Modbus RTU protocol. Additionally, the EE160 features a passive T output.
Functional Design
EE160 is available for wall or duct mount. The IP65 / NEMA 4X enclosure minimizes installation costs and provides outstanding protection against contamination and condensation.
Comfortable Configuration and Adjustment
With an optional configuration adapter and the free EE-PCS Product Configuration Software, the user can set the RS485 interface parameters, the output scaling and perform one or two point adjustment for RH and T.

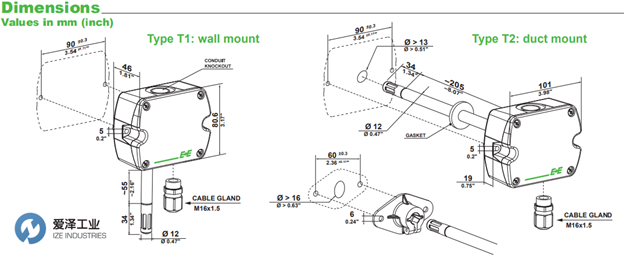

E+E温湿度传感器EE160系列技术尺寸

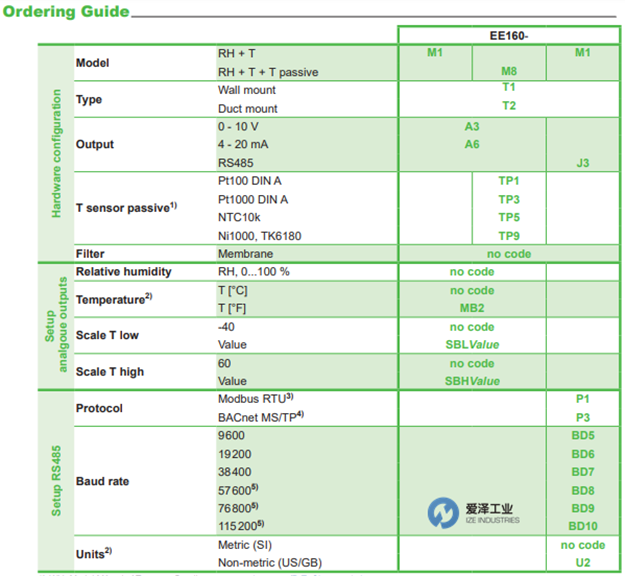

E+E温湿度传感器EE160系列选型
E+E温湿度传感器EE160系列其他常用型号:
E+E EE160-M1T1A3SBL0SBH50
E+E EE160-M1T2A3SBL0SBH50
E+E EE160-M1T2A6SBL0SBH50
E+E EE160-M1T1A6P1BD5
E+E EE160-M1T2A6P1BD5
E+E EE160-HT6XXPBB/TX004M
E+E EE160-HT6xAPBBTx004M
