Electrical data

Nominal voltage

AC/DC 24 V

Nominal voltage   frequency

50/60 Hz

Nominal voltage range

AC19.2...28.8V/   DC21.6...28.8V

Power consumption in   operation

2.5 W

Power consumption in   rest position

1.5 w

Power consumption for   wire sizing

6 VA

Connection supply /   control

Terminals with cable 1   m, 4 x 0.75 mm2 (Terminal 4 mm2)

Parallel operation

Yes (note the   performance data)

Data bus communication

Communicative control

MP-Bus

Number of nodes

MP-Bus max.8

Functional data

Actuating force motor

1000 N

Operating range Y

2...10 V

Input Impedance

100 kΩ

Operating range Y variable

Start point 0.5...30 V
  End point 2.5...32 V

Operating modes   optional

Open/close
  3-point (AC only)
  Modulating (DC 0...32 V)

Position feedback U

2...10 V

Position feedback U   note

Max. 0.5 mA

Position feedback U   variable

Start point 0.5...8 V
  End point 2.5...10 V

Setting fail-safe   position

Stem 0...100%,   adjustable (POP rotary knob)

Bridging time (PF)

2 s

Bridging time (PF)   variable

0...10 s

Position accuracy

±5%

Manual override

with push-button

Stroke

20 mm

Running time motor

150 s / 20 mm

Running time motor   variable

90...150 s

Running time fail-safe

35 s / 20 mm

Adaptation setting   range

manual (automatic on   first power-up)

Adaptation setting   range variable

No action
  Adaptation when switched on
  Adaptation after pushing the manual override button

Override control

MAX (maximum position)   = 100%
  MIN (minimum position) = 0%
  ZS (intermediate position, AC only) = 50%

Override control   variable

MAX = (MIN +   33%)...100%
  ZS = MIN...MAX

Sound power level,   motor

56 dB(A)

Sound power level,   fail-safe

45 dB(A)

Position indication

Mechanically, 5...20   mm stroke

Safety data

Protection class   IEC/EN

II, Safety Extra-Low   Voltage (SELV)

Power source UL

Class 2 Supply

Degree of protection   IEC/EN

IP54

Degree of protection   NEMA/UL

NEMA 2

Enclosure

UL Enclosure Type 2

EMC

CE according to   2014/30/EU

Certification IEC/EN

IEC/EN 60730-1 and   IEC/EN 60730-2-14

UL Approval

cULus according to   UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
  The UL marking on the actuator depends on the production site, the device is   UL-compliant in any case

Mode of operation

Type 1.AA

Rated impulse voltage   supply / control

0.8 kV

Pollution degree

3

Ambient humidity

Max.95% RH,   non-condensing

Ambient temperature

0...50°C [32...122°F]

Storage temperature

-40...80°C   [-40...176°F]

Servicing

maintenance-free

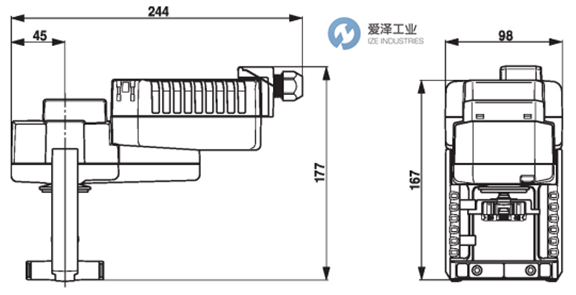

Weight

Weight

1.4 kg

Terms

Abbreviations

POP = Power off   position / fail-safe position
  CPO = Controlled power off / controlled failsafe
  PF = Power fail delay time / bridging time
