Nominal voltage

AC/DC 24 V

Nominal voltage   frequency

50/60 Hz

Nominal voltage range

AC 19.2...28.8 V / DC   19.2...28.8 V

Power consumption in   operation

1 W

Power consumption in   rest position

0.4 W

Power consumption for   wire sizing

2 VA

Connection supply /   control

Cable 1 m, 4 x 0.75   mm²

Parallel operation

Yes (note the   performance data)

Functional data

Torque motor

5 Nm

Operating range Y

2...10 V

Input Impedance

100 kΩ

Position feedback U

2...10 V

Position feedback U   note

Max. 1 mA

Position accuracy

±5%

Direction of motion   motor

selectable with switch   0/1

Direction of motion   note

Y = 0 V: At switch   position 0 (ccw rotation) / 1 (cw rotation)

Manual override

with push-button, can   be locked

Angle of rotation

Max. 95°

Angle of rotation note

can be limited on both   sides with adjustable mechanical end stops

Running time motor

150 s / 90°

Sound power level,   motor

35 dB(A)

Mechanical interface

Form fit 8x8 mm

Position indication

Mechanically,   pluggable

Safety data

Protection class   IEC/EN

III, Safety Extra-Low   Voltage (SELV)

Power source UL

Class 2 Supply

Degree of protection   IEC/EN

IP54

Degree of protection   NEMA/UL

NEMA 2

Enclosure

UL Enclosure Type 2

EMC

CE according to   2014/30/EU

Certification IEC/EN

IEC/EN   60730-1 and IEC/EN 60730-2-14

Mode of operation

Type 1

Rated impulse voltage   supply / control

0.8 kV

Pollution degree

3

Ambient humidity

Max. 95% RH,   non-condensing

Ambient temperature

-30...50°C   [-22...122°F]

Storage temperature

-40...80°C   [-40...176°F]

Servicing

maintenance-free

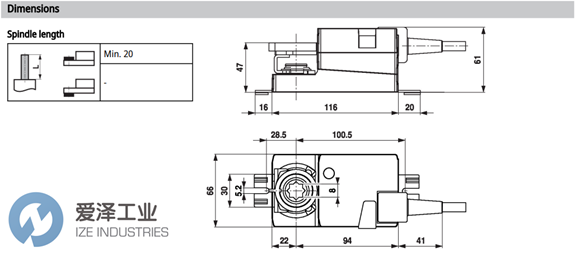

Weight

Weight

0.42 kg
