JOVENTA风阀执行器SM1.10S技术参数
Torque | 16 Nm |
Damper area* | 3.0 m2 |
Running time | 16 s |
Supply voltage | AC/DC24V |
Frequency | 50-60 Hz |
Power consumption | |
Running | 6.0 W |
At end position | 0.6 W |
Dimensioning | 15.0VA / 3.6A @ 2 ms |
Weight | 1.1 kg |
Control signal Y1 | DC0...10V |
Control signal Y2 | 0...20 mA |
Position signal U | DC0...10V |
Angle of rotation/working range | 90° (93° mech.) |
Angle of rotation/limitation | 5°...85° in 5° < steps |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC24V |
Setting range / adjustable | 5°...85° < infinity |
Noise level | 45 d B (A) |
Protection class | II |
Degree of protection | IP 54 (cable downwards) |
Cable aperture connection | M16 x 1.5 |
Mode of action | Type 1 |
Ambient conditions | |
Operating temperature | –20...+50°C / IEC 721-3-3 |
Storage temperature | –30...+60°C / IEC 721-3-2 |
Humidity | 5...95% r.F. |
Service | Maintenance-free |
Standards | Mechanics EN 60 529 / EN 60 730-2-14 |
JOVENTA风阀执行器SPECIAL系列介绍
JOVENTA SPECIAL电动风阀执行器系列设计用于在通风和空调系统中操作风门。紧凑的设计和带有旋转角度限制的通用适配器使这款 JOVENTA 执行器具有高度的通用性。
The JOVENTA SPECIAL electric damper-actuator series is designed to operate air dampers in ventilation and air conditioning systems. The compact design and universal adapter fitted with limitation of rotation angle make this JOVENTA actuator highly versatile.

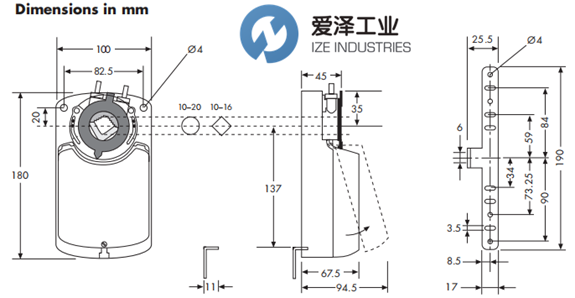

JOVENTA风阀执行器SM1.10S技术尺寸
JOVENTA风阀执行器SPECIAL系列其他常用型号：
JOVENTA SA1.12
JOVENTA SA1.12S
JOVENTA SM1.12
JOVENTA SM1.12S
JOVENTA SA2.12
JOVENTA SA2.12S
JOVENTA SA1.10
JOVENTA SA1.10S
JOVENTA SM1.10
JOVENTA SM1.10S
JOVENTA SA2.10
JOVENTA SA2.10S
