E+E温湿度传感器EE160系列技术参数
Technical Data | |
Measurands | |
Relative humidity | |
Accuracy at 20 °C | ±2.5 % RH |
Temperature dependency, typ. | ±0.03 % RH/°C |
Temperature | ±0.3 °C (±0.54 °F) |
Outputs | |
Analogue output | 0 - 10 V 0 < IL < 1 mA or |
Digital interface | RS485 (EE160 = 1 unit load) |
Passive T-sensor | 4-wire connection, see ordering guide |
General | |
Sensing element | E+E HCT01 with E+E proprietary coating |
Power supply |
|
Connection | Screw terminals, max. 1.5 mm2 |
Housing material | Polycarbonate, UL94V-0 approved |
Protection class | IP65 / NEMA 4 |
Cable gland | M16x1.5 |
Electromagnetic compatibility | EN 61326-1 |
Working range | -40...60 °C (-40...140 °F) / 10…95 % RH |
Storage conditions | -20...60 °C (-4...140 °F) / 10…90 % RH, non-condensing |
E+E温湿度传感器EE160系列介绍
E+E Elektronik的EE160传感器是专门为HVAC应用而设计的，是一种用于测量相对空气湿度和温度的经济高效，高度准确和可靠的解决方案。外壳降低了安装成本，并提供优秀的保护，防止污染和冷凝，从而确保了完善的操作。 EE160采用新型的湿度/温度E + E传感器元件HCT01，具有长期稳定性和抗污染性。它提供±2.5％RH的精度，可用于壁挂式或管道安装式电流或电压输出。 EE 160系列的多功能性通过与免费配置软件一起使用的配置适配器电缆（HA011059）得以扩展，可轻松就地调节湿度和温度。
Specially designed for HVAC applications, the EE160 sensor by E+E Elektronik is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The EE160 employs the new humidity/temperature E+E sensor element HCT01 with excellent long term stability and resistance against pollutants. It provides an accuracy of ±2.5%RH and is available for wall or duct-mounted with current or voltage output. The EE 160 Series versatility is expanded with the configurator adapter cable (HA011059) used with the free configurator software for easy on-site adjustment of the humidity and temperature.

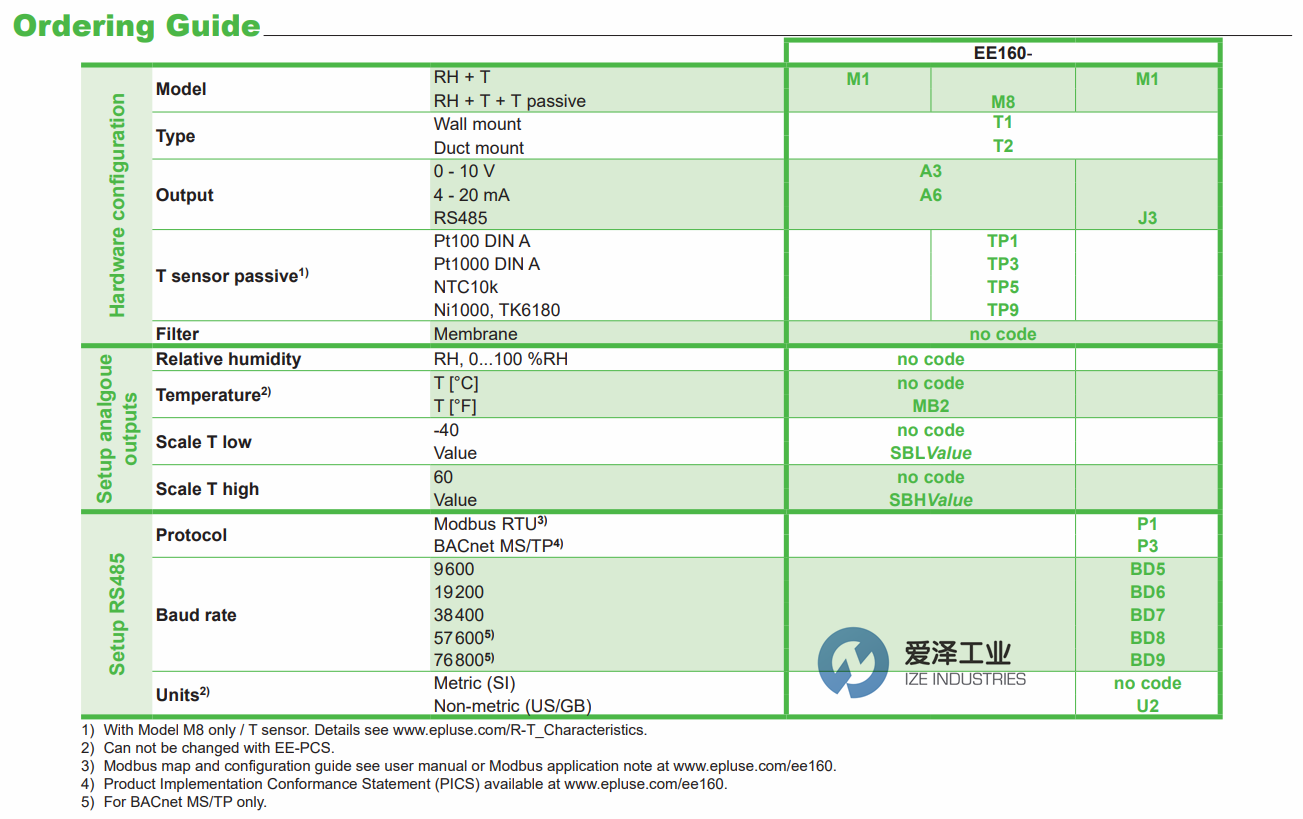

E+E温湿度传感器EE160系列选型
E+E温湿度传感器EE160系列其他常用型号：
E+E EE160-M1T1A3SBL0SBH50
E+E EE160-M1T2A3SBL0SBH50
E+E EE160-M1T2A6SBL0SBH50
E+E EE160-M1T1A6P1BD5
E+E EE160-M1T2A6P1BD5
E+E EE160-HT6xAPBBTx004M
E+E EE160-M1T2A6SBL-40SBH60
E+E EE160-HT6XXPAB/TX004M
E+E EE160-HT6xAPAB-Tx003M
E+E EE160-HTx3xPBB-1AE1N
E+E HUMIDITY AND TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于E+E温湿度传感器EE160-HT6XXPAB/TX004M的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for E+E products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
E+E温湿度传感器EE160系列EE160-HT6XXPAB/TX004M选型及介绍
