TPL条形灯EBAR系列技术参数
General information | |
Power supply | 24 VDC ±10% |
Max standard length (mm) | 1250 |
Functioning mode | CW + STR |
Overdrive | No |
Strobe conditions (On time, duty cycle) | No restriction |
Strobe input | 24VDC PNP & NPN |
Dimming | 0-10V = 100%-20% |
Maximum rising time | 15µs |
Maximum falling time | 10µs |
Wiring | 1x male M12 5 poles |
Materials | |
Body materials | Aluminum |
Finish | Anodization |
Connector materials | Loaded ABS |
Diffuser option | Abrasion-resistant Polycarbonate |
Environment | |
Operating temperature | -10° to +40°C / 80% of humidity without condensation |
Storage temperature | -20° to +60°C / 80% of humidity without condensation |
IP protection | IP 65 |
Labels | RoHS-CE-WEEE |
TPL条形灯EBAR系列介绍
Essential EBAR+是一款功能强大的LED灯，对于需要强光通量的机器视觉应用非常有用。它可以向下设置，与相机的轴线相同，也可以设置入射角，以更好地照亮生产线上的矩形区域。Essential EBAR+ 非常易于使用：无需调整任何东西，只需插入即可。有 2 种工作模式：连续和频闪，上升和下降时间非常短（15 μs 和 10 μs）。它的黑色铝制结构非常坚固，防护等级为IP65。它还有助于消散 LED 产生的热量。此外，连接器附近的 2 个 LED 指示灯显示产品是否通电。Essential EBAR+ 有不同的颜色（包括红外线和紫外线），有多种长度可供选择，从 125 毫米到 1250 毫米（标准/链接）和高达 2500 毫米（OverDrive）。
大功率LED灯，
上升时间：15 ΜS，
尺寸可达 2.5 米（OverDrive 版本）
The Essential EBAR+ is a highly powerful LED light, very useful for machine vision applications requiring intense luminous flux. It can be set up downwards, in the same axis as the camera’s, or with an angle of incidence, to perfectly illuminate rectangular areas on a production line. The Essential EBAR+ is very easy to use: you don’t have to adjust anything, only to plug it. There are 2 functioning modes: continuous and strobe, with very short rising and falling times (15 μs and 10 μs). Its black aluminum structure, very robust, is IP65. It also helps to dissipate the heat generated by the LED. Moreover, 2 LED indicators near the connector show if the product is powered. Available in different colours (included IR and UV), the Essential EBAR+ exist in multiple lengths, from 125 mm to 1250 mm (Standard/Link) and up to 2500 mm (OverDrive).
HIGH POWER LED LIGHT,
RISING TIME: 15 μs,
SIZES UP TO 2.5m (OverDrive version)

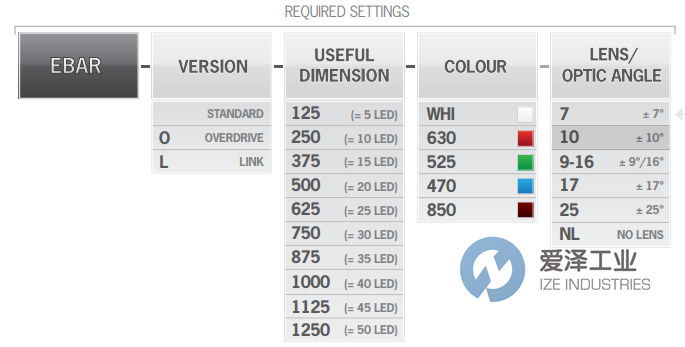

TPL条形灯EBAR系列选型
TPL条形灯EBAR系列其他常用型号：
TPL EBAR-125-WHI-10
TPL EBAR-0-250-630-17
TPL EBAR-L-500-470-25
TPL EBAR-125-850-17
TPL BAR LIGHTS NEW + ORIGINAL+ ONE YEAR WARRANTY
