TPL环形灯HPRING系列技术参数
Technical specifications | |
Electronics | |
Power supply | 24 VDC ±10% |
Functioning mode | Continuous or strobe according to wiring |
Maximum rising time | 1.5ms |
Maximum falling time | 1ms |
Wiring | M8 3 poles male connector |
Max. Consumption | 15 W |
Optics | |
Colour | White, Red, Green, Blue, Infrared (UV 405 available) |
Number of Leds | 12 |
Standard lens | ± 10° |
Mechanics | |
Dimensions | Ø Int : 58 mm ‐ Ø Ext : 112 mm |
Width | 28 mm |
Weight (g) | 400 |
Materials | Black anodized aluminum |
Diffuser | Transparent diffuser |
Fixing | 4 M3 screws |
Environment | |
Operating temperature | 0 - 40°C |
Storage temperature | 0 - 60°C |
IP protection | IP 40 |
Labels | RoHS-CE-WEEE |
TPL环形灯HPRING系列介绍
HPRING 是一个实心环，配备 12 个高功率 LED，对于圆形区域的定向照明非常有用。在 TPL Vision 的产品系列中，它绝对是较强大的照明之一。在1m的距离处，HPRING的标准版本可以照亮550mm的圆形区域。
其大内径使其与更大的相机物镜兼容。HPRING揭示了其在机器人领域（例如，在包装过程中定位产品）以及质量控制领域的所有潜力。
12 个高功率 LED
连续或频闪模式
适合大型相机
The HPRING is a solid ring, equipped with 12 high powerful LEDs, very useful for the directive lighting of a circular area. Among TPL Vision’s products range, it definitely appears to be one of the most powerful lightings. At a distance of 1m, the standard version of the HPRING can light up a circular area of 550mm.
Its large internal diameter make it compatible with the largest camera’s objectives. The HPRING reveals all its potential in the field of robotics (for example, to locate the products during the packaging process) and also in the field of quality control.
12 HIGH POWERFUL LEDS
CONTINUOUS OR STROBE MODE
FITS THE BIGGEST CAMERAS

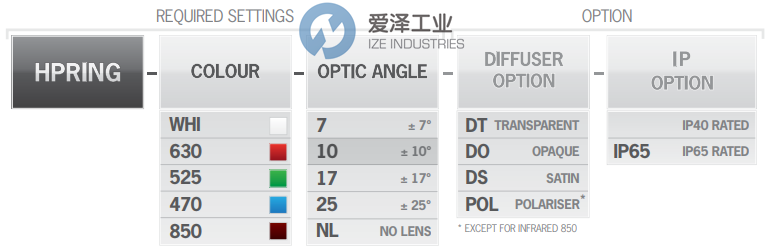

TPL环形灯HPRING系列选型
TPL环形灯HPRING系列其他常用型号：
TPL HPRING-WH-10-D0
TPL HPRING-630-1 7-DT-IP65
TPL HPRING-470-25-POL
TPL HPRING-630-17-DO
TPL LIGHTING NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TPL环形灯HPRING-630-17-DO的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TPL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
