MURPHY振动开关VS2EXR系列技术参数
Normal Operating Temperature | -40° to 185°F (-40° to 85°C); For CSA applications, applicable temperature specification is derated to -40° to 140°F (-40° to 60°C) |
Case | Base mount, explosion-proof aluminum alloy housing; meets IP54 specifications; Class I, Division 1, Groups C & D hazardous locations |
Certification | CSA Canada and US |
Snap switch | 1-SPDT snap switch and reset coil; 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC |
Remote Reset | 115 VAC or 24 VDC (specify) |
Shipping Weight | 5 lb. 8 oz. (2.2 kg) |
Shipping Dimensions | 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm) |
MURPHY振动开关VS2EXR系列介绍
VS2EXR 型号除了复位按钮外,还配备了远程电复位功能。VS2EXR仅使用一个单刀双掷 (SPDT) 速动开关,并通过了加拿大和美国的CSA 认证,适用于I类1区C组和D组危险场所。其结构符合IP54防护等级标准。
Model VS2EXR features an electric remote reset feature in addition to the reset button.The VS2EXR uses only one SPDT snap-switch and is CSA for Canada and US, listed for Class I, Division 1, Groups C & D hazardous locations. It is constructed to meet IP54 specifications.

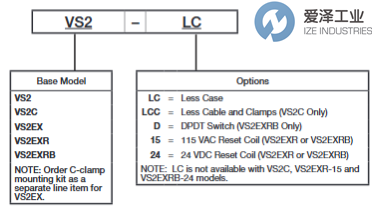

MURPHY振动开关VS2系列选型

MURPHY振动开关VS2系列其他常用型号:
MURPHY VS2EXR24
MURPHY VS2
MURPHY VS2C
MURPHY VS2EX
MURPHY VS2EXR
MURPHY VS2EXRB
MURPHY switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MURPHY振动开关VS2EXR24的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for MURPHY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
MURPHY振动开关VS2系列VS2EXR24技术参数及介绍
