DET-TRONICS火焰探测器X3301系列技术参数
Operating Voltage | 24 Vdc nominal (18 Vdc minimum, 30 Vdc maximum). Maximum ripple is 2 volts peak-to-peak | |
Power Consumption | 4 watts minimum (without heater), 17 watts at 30 Vdc with EOL resistor installed and heater on maximum | |
Relays | Contacts rated 5 amperes at 30 Vdc | |
Fire Alarm: | — Form C (NO and NC contacts) | |
— normally de-energized | ||
— latching/non-latching | ||
Fault: | — Form A (NO contacts) | |
— normally energized | ||
— latching/non-latching | ||
Auxiliary: | — Form C (NO and NC contacts) | |
— normally energized/de-energized | ||
— latching/non-latching. | ||
Current Output (Optional) | 0–20 mA (± 0.3 mA), with a maximum loop resistance of 500 ohms from 18–19.9 Vdc, 600 ohms from 20–30 Vdc | |
Temperature Range | Operating: | –40°F to +167°F (–40°C to +75°C) |
Storage: | –67°F to +185°F (–55°C to +85°C) | |
Hazardous location ratings from –55°C to +125°C | ||
Humidity Range | 0 to 95% relative humidity, can withstand 100% condensing humidity for short periods of time. | |
Spectral Sensitivity Range | 4 - 5 microns | |
Wiring | 16 AWG or 2.5 mm2 shielded cable is recommended. | |
Enclosure Material | Copper-free aluminum (painted) or stainless steel (316/CF8M Cast) | |
Conduit Entry Size | 3/4 inch NPT or M25 | |
DET-TRONICS火焰探测器X3301系列介绍
X3301 提供快速火灾探测性能，同时限制滋扰和误报。多功能、坚固、可靠，开发和制造时考虑到了危险和关键工业过程操作员的需求。
特征
• 多种灵敏度模式
• Optical Integrity ( o i ®) 每 60 秒执行一次自动故障安全检查
• 适用于恶劣环境和天气的加热光学器件
• 带有事件时间和日期标记的数据记录器（1500 个事件）
• FM 认可的最长检测范围
技术规格
• 多种通信协议，包括 0-20 mA、继电器、Modbus、HART、FDT®/DTM 和 Eagle Quantum Premier® (EQP) 安全系统
• 用于本地报警和简单故障识别的诊断 LED
• 大容量事件日志存储（1,500 个事件）
• 支持 HART
The X3301 delivers fast fire detection performance while limiting nuisance and false alarms. Versatile, robust, reliable, developed and built with the needs of hazardous and critical industrial process operators in mind.
Features
• Multiple sensitivity modes
• Optical Integrity (oi®) performs automatic fail-safe checks every 60 seconds
• Heated optics for adverse environments and weather
• Data logger with event time and date stamping (1500 events)
• Longest FM Approved detection range
Technical Specifications
• Multiple communication protocols, including 0-20 mA, relay, Modbus, HART, FDT®/DTM and Eagle Quantum Premier® (EQP) safety system
• Diagnostic LED for local alarm and simple fault identification
• Large capacity event log storage (1,500 events)
• HART capable

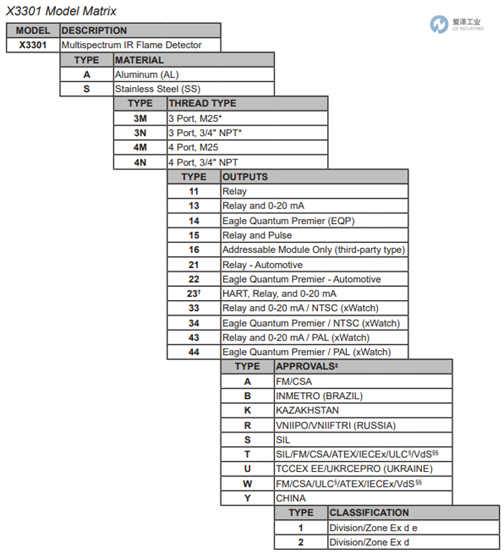

DET-TRONICS火焰探测器X3301系列选型
DET-TRONICS火焰探测器X3301系列其他常用型号：
DET-TRONICS X3301A4N11Y2
DET-TRONICS X3301A4N23Y2
DET-TRONICS X3301S4N23Y2
DET-TRONICS X3301A4M11Y2
DET-TRONICS X3301S4N11Y2
DET-TRONICS X3301S4M11Y2
DET-TRONICS X3301A4N13Y2
DET-TRONICS X3301A4N13Y2
DET-TRONICS X3301A4M13Y2
DET-TRONICS X3301S4N13Y2
DET-TRONICS X3301S4M13Y2
DET-TRONICS X3301A4N21Y2
DET-TRONICS X3301A4M21Y2
DET-TRONICS X3301A4M23Y2
DET-TRONICS X3301S4M23Y2
