KROM SCHRODER燃烧控制单元IFS110IM系列技术参数
Technical Data | |
Operating voltages IFS 110 IM | 110/120 V, +10/-15%, 50/60 Hz |
Trial for ignition period: | 3, 5 or 10 s |
Ignition time: | approx. 2, 3 or 7 s |
Remote reset: | yes |
Power consumption: | 9 VA |
Output for ignition transformer by means of semi-conductors – no switch contacts. | |
Output voltage for valves and ignition transformer = supply voltage. | |
Contact load: | max. 1 A per output |
Total load: | max. 2 A |
Flame rod: | 220 VAC |
Ionisation current: | > 1 µA |
Reaction time: | < 2 s |
No. of valves: | 2 |
Protection in the device: | micro fuse T2AH 250 V slow-blow,acc. IEC 127-2/5 |
Fault indicator: | LED in the reset button and connection for external fault indicator |
Ambient temperature: | -4 °F to 140 °F (-20 °C to + 60 °C) |
Typ of enclosure: | NEMA 1 |
Fitting position: | arbitrary |
Weight: | 1.57 lbs (0.71 kg) |
KROM SCHRODER燃烧控制单元IFS110IM系列介绍
自动燃烧器控制单元 IFS 110IM 适用于点燃和控制所有类型燃气装置中的燃气燃烧器。
该控制器专为高循环频率和长寿命而设计,尤其适用于工业应用。
结合火焰继电器 IFW 15 T 的多燃烧器控制。
The automatic burner control unit IFS 110IM is suitable for the ignition and control of gas burners in gas firing installations of all types.
This control is designed for high cycling frequency and long life, especially for industrial applications.
Multiburner control in conjunction with flame relay IFW 15 T.

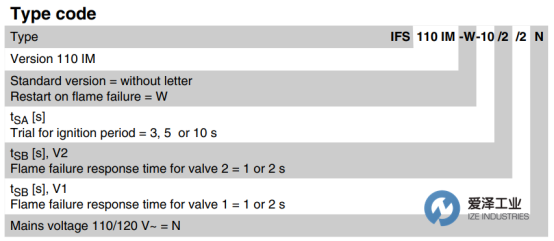

KROM SCHRODER燃烧控制单元IFS110IM系列选型
KROM SCHRODER燃烧控制单元IFS110IM系列其他常用型号:
KROM SCHRODER IFS110IM
KROM SCHRODER IFS110IM-10/1/1T
KROM SCHRODER IFS110IM-3/1/1
KROM SCHRODER IFS110IM-5/1/1
KROM SCHRODER IFS110IM-5/1/1N
KROM SCHRODER IFS110IM-5/1/1T
