HONEYWELL减压阀D06F系列技术参数
Media | |
Medium: | Drinking water |
Connections/Sizes | |
Connection sizes: | 1/2" - 2" |
Nominal sizes: | DN15 - DN50 |
Pressure values | |
Max. inlet pressure with clear filter bowl: | 16 bar |
Max. inlet pressure with brass filter bow: | 25 bar |
Outlet pressure: | 1.5 - 6 bar |
Preset outlet pressure: | 3 bar |
Min. pressure drop: | 1 bar |
Operating temperatures | |
Max. operating temperature medium with clear filter bowl: | 40 °C |
Max. operating temperature medium with brass filter bowl: | 70 °C max. operating pressure 10 bar |
HONEYWELL减压阀D06F系列介绍
通过安装减压阀，可以避免造成压力损坏，并减少用水量。即使入口压力波动较大，设定压力也保持恒定。
降低操作压力并将其保持在恒定水平，以减少安装中的流动噪音。
特殊特性
• 入口压力平衡-由于入口压力的波动，对出口压力没有影响
• 尺寸11/4“LGA批准的低噪音， Group 1无限制
• 阀插件是高质量的合成材料，可以完全题换
• 通过转动调节旋钮来设定出口压力
• 设定的压力直接在设定的点比例尺上表示
• 调节弹簧与水不接触
• 积分细滤波器
• 也可无配件
By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation.
Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
•
SPECIAL FEATURES
• Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
• Up to size 11/4" approved by LGA for low noise, Group 1 without limitations
• The valve insert is of high quality synthetic material and can be fully exchanged
• The outlet pressure is set by turning the adjustment knob
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the drinking water
• Integral fine filter
• Also available without fittings

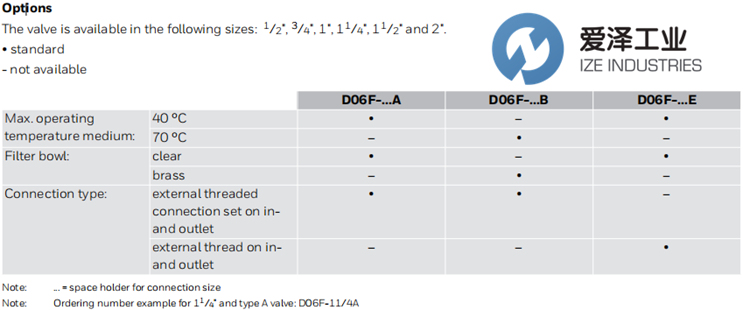

HONEYWELL减压阀D06F系列选型
HONEYWELL减压阀D06F系列其他常用型号：
HONEYWELL DVGW DW-6330
HONEYWELL D06F-1/2A
HONEYWELL D06F-3/4A
HONEYWELL D06F-1A
HONEYWELL D06F-11/4A
HONEYWELL D06F-11/2A
HONEYWELL D06F-2A
HONEYWELL D06F-1/2B
HONEYWELL D06F-3/4B
HONEYWELL D06F-1B
HONEYWELL D06F-11/4B
HONEYWELL D06F-11/2B
HONEYWELL D06F-2B
HONEYWELL D06F-1/2E
HONEYWELL D06F-3/4E
HONEYWELL D06F-1E
HONEYWELL D06F-11/4E
HONEYWELL D06F-11/2E
HONEYWELL D06F-2E
