KROM SCHRODER燃烧控制单元BCU370系列技术参数
Technical data |
Mains voltage: |
Flame signal for: |
Air pressure check during pre-purge and operation by external air pressure switch DL. |
Maximum length of ignition cable with integrated electronic ignition: 1 m (3.2 ft). |
Maximum length of ionization/UV cable: 50 m (164 ft). |
Ambient temperature: |
Enclosure: IP 54 pursuant to IEC 529. |
Permitted operating altitude: < 2000 m AMSL. |
KROM SCHRODER燃烧控制单元BCU370系列介绍
BCU 370燃烧器控制单元在间歇或连续运行中控制，点火和监测无限容量的工业强制通风燃烧器。
它可用于直接点火的强制通风燃烧器或先导燃烧器点火的强制通风燃烧器。BCU 370激活风扇并将连接的蝶阀设置为预吹扫和点火位置。在预吹扫和燃烧器启动之后，使能信号被发送到外部控制器，该外部控制器根据容量需求对蝶形阀进行定位。燃烧器操作结束后进行后吹扫。燃烧器控制单元BCU 370监视气体和空气压力。可选的集成密封性控制功能可通过外部气压开关检查阀门。
通过光学接口和BCSoft PC软件的可编程性保证了对相关应用的最佳适应。可调节的启动尝试和可激活的自动重启功能确保了燃烧器设备的高度灵活性。快速启动选项允许强制通风燃烧器符合标准的启动方式，而无需在受控停机后进行预吹扫。这样避免了不必要的空气进入燃烧室。在需要温度后尽快提供热量输出。
The BCU 370 burner control unit controls, ignites and monitors industrial forced draught burners of unlimited capacity in intermittent or continuous operation.
It can be used for directly ignited forced draught burners or forced draught burners ignited with pilot burner.The BCU 370 activates the fan and sets the connected butterfly valve to Pre-purge and Ignition position. After pre-purge and burner start, the enable signal is issued to an external controller which positions the butterfly valve in accordance with the capacity demand. Postpurge occurs after the end of burner operation. The burner control unit BCU 370 monitors the gas and air pressure. An optionally integrated tightness control function checks the valves with an external gas pressure switch.
Programmability by means of the optical interface and BCSoft PC software guarantees optimum adaptation to the relevant application. Adjustable start-up attempts and automatic restart which can be activated ensure the high flexibility of the burner equipment.The quick-start option allows standard-compliant startup of the forced draught burner without pre-purge after controlled shut-down. This avoids unnecessary admission of air into the combustion chamber. The heat output is available as quickly as possible after a temperature demand.

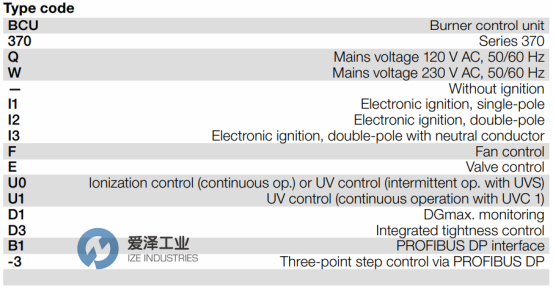

KROM SCHRODER燃烧控制单元BCU370系列选型
KROM SCHRODER燃烧控制单元BCU370系列其他常用型号：
KROM SCHRODER BCU370WFEU0D1B1-3
KROM SCHRODER BCU370WFEU0D3B1-3
KROM SCHRODER BCU370WFEU0D1
KROM SCHRODER BCU370WFEU0D3
KROM SCHRODER BCU370WI1FEU0D1
KROM SCHRODER BCU370WI1FEU0D3
