MAXITROL压力调节器RV系列技术参数
Model |

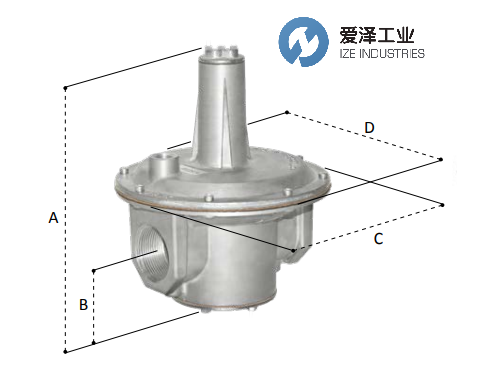

Pipe Sizes | Swing Radius | Dimensions | ||||
A | B | C | D | ||||
RV52… | Rp ½, Rp ¾ | 91 mm | 124 mm | 32 mm | 83 mm | 81 mm | |
RV53… | Rp ¾, Rp 1 | 99 mm | 132 mm | 33 mm | 99 mm | 95 mm | |
RV61… | Rp 1, Rp 1 ¼ | 122 mm | 164 mm | 41 mm | 138 mm | 111 mm | |
RV81… | Rp 1 ¼, Rp 1 ½ | 162 mm | 213 mm | 51 mm | 178 mm | 153 mm | |
RV91… | Rp 2 | 216 mm | 275 mm | 60 mm | 232 mm | 165 mm | |
Rp 2 ½ | 212 mm | 267 mm | 62 mm | 232 mm | 181 mm | ||
RV111… | Rp 2 ½, Rp 3 | 284 mm | 373 mm | 89 mm | 324 mm | 229 mm | |
RV131… | DN100 | 462 mm | 574 mm | 120 mm | 457 mm | 350 mm |
MAXITROL压力调节器RV系列介绍
Maxitrol的原始直通流量(STF)设计调节器是非锁定型调节器,可在低入口压力下实现高容量。STF设计和其他类型的调节器之间的区别在于锥形阀。锥形主体允许气体直接流经调节器而无需改变方向。摩擦流动阻力减小,从而产生更大的容量。改进的流量模式可在极低的压差下提供准确,灵敏的调节。典型的应用包括用于低压或中压气源的住宅,商业和工业用燃气器具和设备。
Maxitrol’s straight-thru-flow (STF) design regulators are non-lockup type regulators for high capacities at low inlet pressures. The cone principal permits gas to flow straight through the regulator without changing directions. Frictional flow resistance is reduced, resulting in greater capacity. An improved flow pattern provides accurate, sensitive regulation at extremely low pressure differentials. Typical applications include residential, commercial, and industrial gas-fired appliances and equipment used on low or medium pressure gas supplies.
MAXITROL压力调节器RV系列其他型号:
MAXITROL RV52M
MAXITROL RV53M
MAXITROL RV61M
MAXITROL RV81M
MAXITROL RV91M
MAXITROL RV111M
MAXITROL RV131FM
MAXITROL RV53M-RP
MAXITROL RV61-1
