HOKUYO光学数据传输设备BWF-11A/11B技术参数
Model No. | BWF-11A/11B |
Transmission distance | 100m |
Directional angle | ±2° |
Transmission method | Full duplex two-way transmission |
Transmission speed | DC to 19.2kbps |
Input/Output interface | RS-232C/RS-422 |
Modulation method | FSK modulation |
Modulation frequency | Type A (transmission 5.5MHz, reception 6.0MHz), Type B (transmission 6.0MHz, reception 5.5MHz) |
Power source | 12 to 24VDC (10 to 30VDC) |
Current consumption | 150mA or less (at 12VDC), 80mA or less (at 24VDC) |
Warning output | Photo-coupler (35V, 50mA), |
Light-reception level Output | 0 to 5V (in proportion to light reception amount) |
Indication lamps | Power source, carrier detect, data input, data output, light-reception level margin (Red LED) |
Connection | Connector (25pins D-sub connector), but M3 screw terminal at power source |
Ambient illuminance | 20,000lux or less (Both sun light and incandescent lamp) |
Ambient temperature/humidity | -10 to +50℃, 85%RH or less (not icing, not condensing) |
Protective structure | IP60 (IEC Standard), available up to IP64 by user's option |
Case material | ABS resin |
Weight | Approx. 500g |
HOKUYO光学数据传输设备BWF系列介绍
BWF 系列光学数据传输设备使数据能够在长距离对齐的一对单元之间快速可靠地传输。典型用途是高架起重机和堆垛机、自动存储和检索系统 (AS/RS) 以及用于从车辆到控制单元的非接触式双向通信的转运车。使用调制光作为传输方法意味着这些收发器不会像拖曳电缆和滑环那样产生物理磨损，也不像无线电系统那样需要重新校准。
• 实际传输距离为额定值的2倍以上，实现了高可靠性的数据传输。
• 接口种类丰富，RS-232C、RS-422、电流环、RS-422/RS-485 multi-drop等。
• 提供电平降低警告输出，以防止光轴错位或镜头表面脏污等故障。
• 可通过光学检测仪或检测终端方便地检测光轴调整情况。
The BWF Series optical data transmission devices enable data to be transmitted quickly and reliably between an aligned pair of units over long distances. Typical uses are on overhead and stacker cranes, automated storage and retrieval systems (AS/RS) and transfer cars for non-contact bi-directional communication from the vehicle to the control unit. The use of modulated light as the transfer method means that these transceivers do not incur physical wear like trailing cables and slip rings nor do they require recalibration like radio systems.
• Actual transmission distance is 2 times or more than rated value and data transmission with high reliability is realized.
• Many kinds of interface are lined up, RS-232C, RS-422, current-loop and RS-422/RS-485 multi-drop, etc.
• Level lowering warning output are provided due to prevent some troubles such as dislocation of optical axis or dirty lens surface.
• It can be easy to check optical axis adjustment with optical checker or checking terminal.

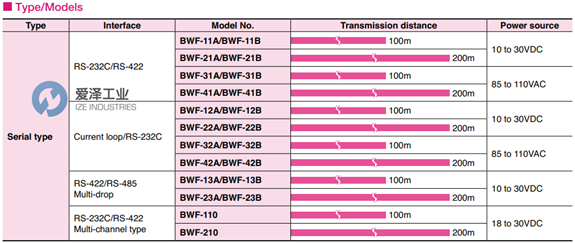

HOKUYO光学数据传输设备BWF系列选型
