HIRSCHMANN交换机RS30系列技术参数
Product Description | |
Type | RS30 Series 24 Ports |
Construction | |
Mounting | DIN Rail |
Protection Class | IP20 |
Dimensions (WxHxD) | 110 x 131 x 111 mm |
Weight | Weight |
Ambient Conditions | |
Operating Temperature | 0°C to +60°C, -40°C to +70°C, or -40°C to +70°C (optional Conformal Coating) |
Storage/Transport Temperature | -40°C to +70°C |
Relative Humidity (non-condensing) | 10% to 95% |
Conformal Coating | Yes (variant dependent) |
Interfaces | |
V.24 Interface | 1 x RJ11 Socket |
USB Interface | 1 x USB (ACA21-USB Adaptor) |
Power Requirements | |
Operating Voltage | 12/24/48 V DC (9.6 to 60 V) and 24 V AC (18 to 30 V) (redundant) |
Regulatory Approvals | |
Safety of Industrial Control Equipment | cUL508 |
Hazardous Locations | ISA12.12.01 Class 1 Div 2 |
Transportation | NEMA TS2 |
Railway (track) | EN 50121-4 |
Substation | IEC 61850-3, IEEE 1613 |
HIRSCHMANN交换机RS30系列介绍
带/不带 PoE 的千兆以太网上行链路端口
RS30 紧凑型 OpenRail 管理型以太网交换机可以通过 2 个千兆端口和 8-16 或 24 个快速以太网上行链路端口适应 8 到 24 个端口的密度。
Gigabit Ethernet Uplink Ports with/without PoE
The RS30 compact OpenRail managed Ethernet switches can accomodate from 8- to 24-port densities with 2 Gigabit Ports and 8- 16- or 24- Fast Ethernet Uplink Ports.

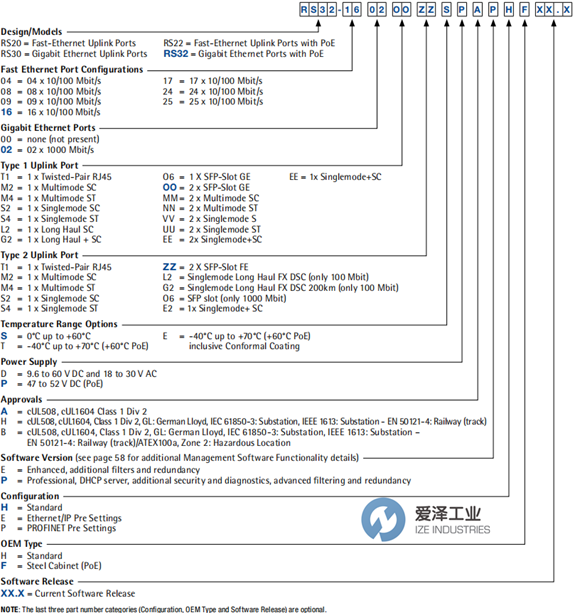

HIRSCHMANN交换机RS30系列选型
HIRSCHMANN交换机RS30系列其他常用型号：
HIRSCHMANN RS30-2402O6O6SDAEHX
HIRSCHMANN RS30-2502O6O6SDAEHF
HIRSCHMANN RS32-1602OOZZSPAPHF
HIRSCHMANN Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HIRSCHMANN交换机RS30-2402O6O6SDAEHX的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HIRSCHMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
HIRSCHMANN交换机RS30系列RS30-2402O6O6SDAEHX技术参数及选型
