EtherWAN以太网交换机EMC1600技术参数
Power | |
Input | 100-240VAC, 50-60Hz Internal Univeral PSU |
Consumption | System: 5.4W Max |
Protection | Over current protection |
Mechanical | |
Casing Material | Metal |
Dimension | 440 x 276 x 90mm (W x D x H)(17.32" x 10.87" x 3.54") |
Weight | 14.96 lbs (6.8 kg) |
Installation Type | Rack mounting |
Environmental | |
Operating Temp. | 32 to 113°F (0 to 45°C) |
Storage Temp. | 14 to 158°F (-10 to 70°C) |
Relative Humidity | 5% to 95% (non-condensing) |
Regulatory Approvals | |
ISO | Manufactured in an ISO 9001 facility |
Safety | UL 60950-1 |
EMC Compliances | CE Mark Class A |
Interface | |
LED Indicator | Per Unit: Power Status |
Relay Output | 30VDC/0.6A |
EtherWAN以太网交换机EMC1600产品介绍
EMC1600 是一款16托架机箱，专门设计用于在19英寸机架外壳中容纳和供电的选定 EtherWAN 媒体转换器和以太网扩展器。
热插拔设计使 EtherWAN Media 的安装、产品添加和删除变得容易。 转换器和以太网扩展器，而不会中断机箱内的现有通信每个隔间都相互电气隔离，并带有保险丝过流保护，因此具有前所未有的可靠性。冗余内部电源提供电源冗余和负载共享。对交流电源输入的支持使 EMC1600 可以在全球范围内使用。EMC1600采用坚固的金属外壳、标准19英寸机架安装和两单元高度设计，是互连不同网络介质和将以太网扩展到其边界之外的理想选择。
The EMC1600 is a 16-Bay chassis specifically designed to house and power selected EtherWAN Media Converters and Ethernet Extenders in a 19" rack enclosure.
The hot swappable design enables easy installation, product additions, and deletions of EtherWAN Media. Converters and Ethernet Extenders without interrupting existing communications within the chassis. Each bay is electrically isolated from each other with fused over-current protection resulting is unprecedented reliability. The redundant internal power supplies provide both power redundancy and load sharing. Support for AC power input allows the EMC1600 to be used worldwide. With its solid metal enclosure, standard 19” rack-mount and two-unit height design, the EMC1600 is ideal for interconnecting disparate network media and extending Ethernet beyond its boundaries.

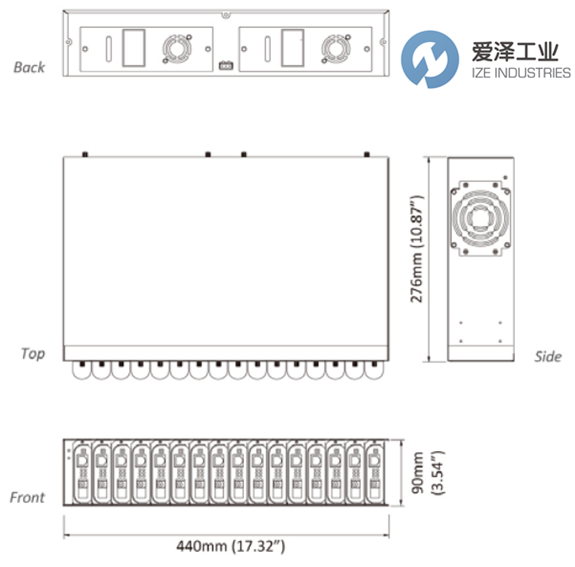

EtherWAN以太网交换机EMC1600技术尺寸
