ASBG蝶阀B100BD06EPBA26技术参数
Code | B100BD06EPBA26 |
Product | Butterfly valve wafer type |
Control | Pneumatic aluminum cylinder |
Type of actuator | Double acting |
Body | Cast iron lined polyester coating |
Trim | 316SS |
Seat | EPDM |
Packing | PTFE |
Pressure | PN16/150LB |
Connection | ANSI Flange |
Caliber | 12" |
ASBG蝶阀B100系列介绍
B100 系列阀门不仅具有卫生级阀门的特点，而且具有独特的内部流量特性和能力。Aisenberg 的 B100 系列阀门是带法兰定位孔的对夹版本。
一体式设计。阀板的阀板边缘经球形加工和手工抛光，具有操作扭矩低、阀座寿命长、密封性好等特点。这种设计完全防止了卫生行业中灰尘颗粒和细菌的聚集。阀杆 阀板表面也可以包一层丁腈橡胶或乙丙橡胶，防止金属表面腐蚀。阀板和阀杆的“薄板”设计可以提高Cv值（比普通芯轴高50%）和 压力恢复能力越大，所以压降能量越小。
B100 series valves not only have the characteristics of sanitary valves, but also has a unique internal flow characteristics and capabilities.. Aisenberg's Series B100 valve is a wafer version with flange locating holes.
One-piece design.The disc edge of the valve plate has characteristics of low operating torque, seat long life and good sealing by the spherical processing and manual polishing.This design completely prevents the collection of dust particles and bacteria in the sanitary industry.Stem and valve plate surface can also be wrapped with a layer of NBR or EPR, to prevent corrosion of metal surface.The "thin plate" design of the valve plate and stem can increase the Cv value (50% higher than the common mandrel) and the greater pressure recovery capability, so the pressure drop is less energy.

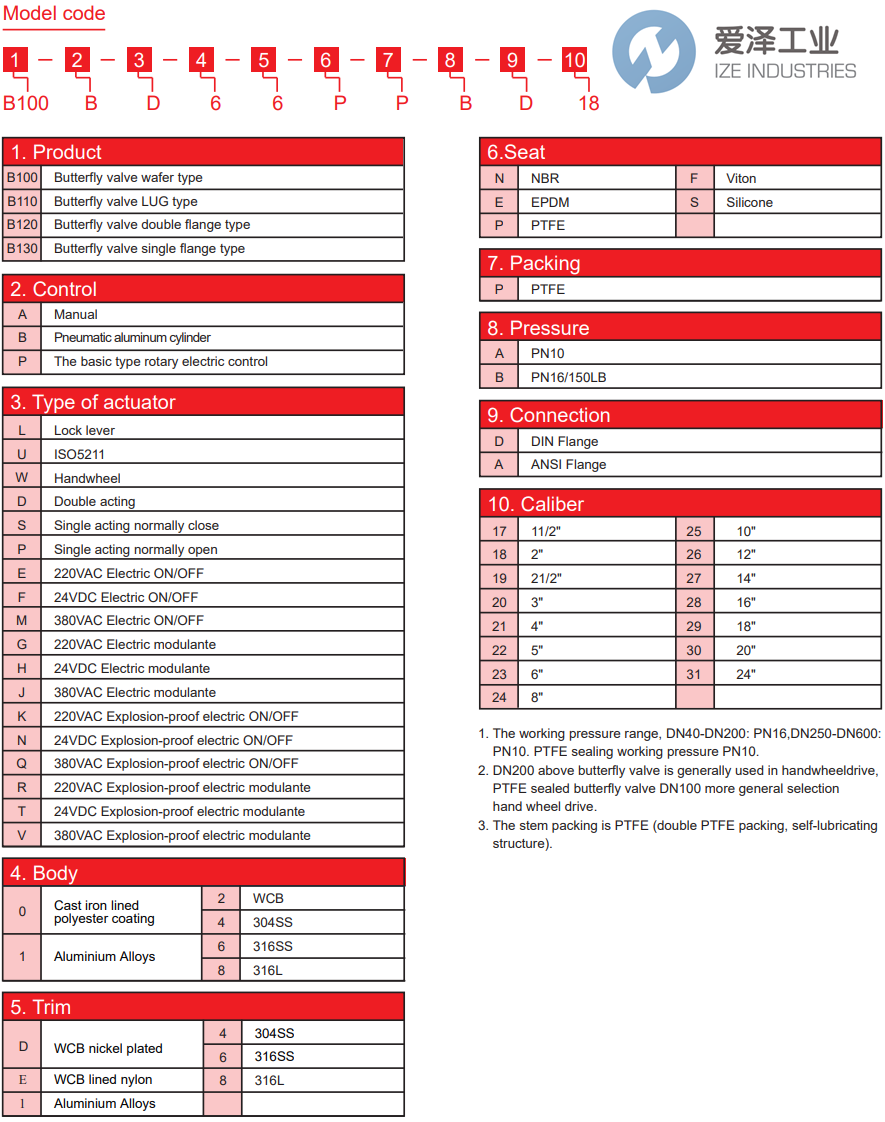

ASBG蝶阀B100系列选型
ASBG蝶阀B100系列其他常用型号：
ASBG B100BD04PPBD21
ASBG B400AL2FPPBA22
ASBG B100BD04PPBD23
ASBG B100BD04PPBD20
ASBG B100BD06EPBA26
ASBG Butterfly valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ASBG蝶阀B100BD06EPBA26的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ASBG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
ASBG蝶阀B100系列B100BD06EPBA26技术参数及选型
